Solving the 5 Most Common Vision-Guided Robotics Challenges

Spend enough time on factory floors, and you see the same scene repeat: a production manager points at a robotic cell that passed every lab test and says, "It worked perfectly in the demo. Now it stops every twenty minutes." The robot hasn't changed, what changed is the environment, and the vision system isn't keeping up.

Vision-guided robotics (VGR) gives robots the eyes they need for dynamic, variable production conditions. When it works, it eliminates costly fixtures, adapts to changeovers, and inspects while handling. When it fails, the failure is almost always traceable to one of five predictable engineering gaps.

Challenge 1 — Lighting Variability Undermines the Whole System

Lighting design determines machine vision reliability more than camera resolution in most robotic vision system applications. Ambient light shifts, reflective surfaces, and poorly specified illumination account for the majority of false rejects and missed detections in 2D vision-guided robotics deployments.

Many industrial environments are hostile to vision systems in ways a lab never reveals. Overhead skylights shift the ambient light balance as clouds pass. Reflective metal parts create glare that saturates camera sensors. A shift change leaves a door open and changes the light angle across the work cell.

Rule-based 2D systems are acutely sensitive to these conditions because they rely on consistent contrast, edge definition, and brightness to locate parts and make inspection decisions. When those change, even slightly, the system starts generating false positives, missed detections, or default errors.

There are two practical fixes:

1. Enclose the lighting environment. A light shield around the inspection area decouples your vision system from ambient conditions. It's inexpensive and effective, and it's the first thing experienced integrators do.
2. Move to 3D vision for variable surfaces or lighting. Unlike 2D systems, 3D machine vision systems use structured light patterns projected by the system itself, making them largely independent of ambient lighting. The camera reads depth from the projected pattern, not from reflected ambient light.

Machine vision lighting selection also matters: dome illumination eliminates specular reflection on curved surfaces; backlighting reveals fill levels and silhouettes; coaxial lighting surfaces microscopic features diffuse lighting obscures. Specifying lighting alongside the camera, not after, is the single most cost-effective decision in a VGR build.

Challenge 2 — Part Variability and Bin Picking Remain Hard Problems

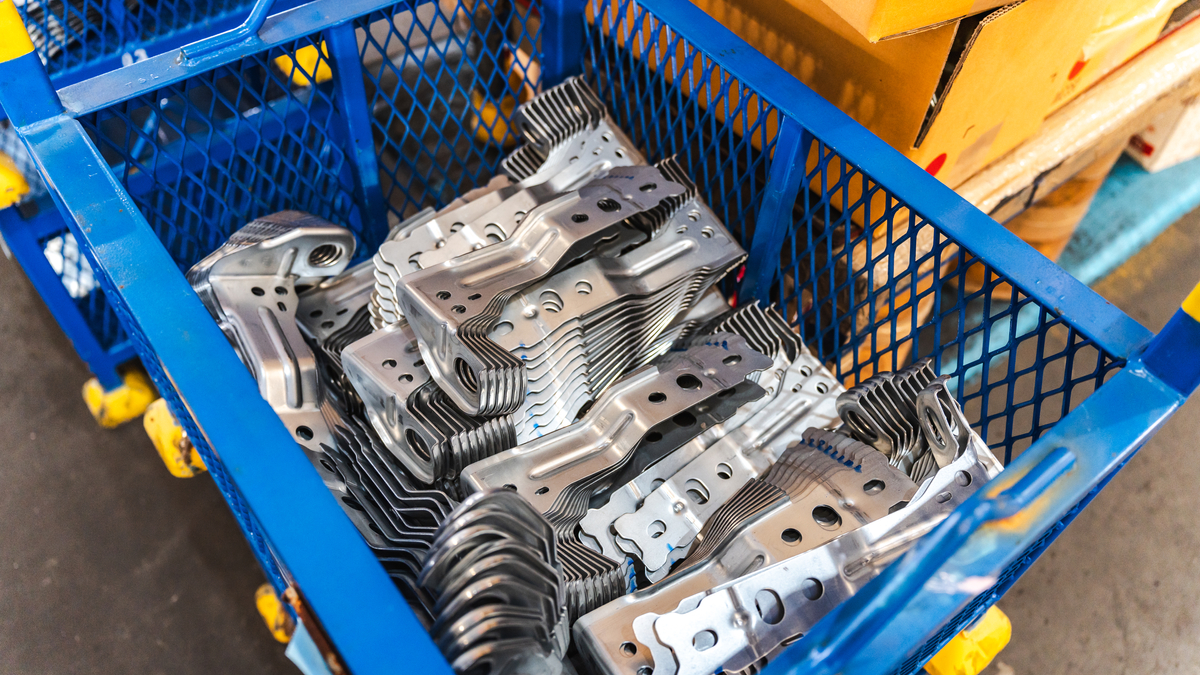

Partial occlusion, overlapping parts, reflective surfaces, and random orientations in bin picking applications exceeded the capabilities of early rule-based vision-guided robotics systems. AI-powered machine vision now solves these conditions, but only when the system is correctly trained and the 3D sensor is matched to the part geometry.

Bin picking is the application that exposed the limits of first-generation machine vision robotics. Early systems worked when parts arrived on a flat conveyor, consistently oriented. Put those same parts in a bin, and the system had no reliable way to determine which surface was graspable or plan a collision-free pick path.

The specific failure modes:

• Partial occlusion — overlapping parts obscure reference features the algorithm needs to locate the part
• Pose ambiguity — symmetric parts look identical from multiple orientations, confusing the localization algorithm
• Reflective surfaces — shiny metal parts create false depth returns in structured light 3D systems
• Low contrast — parts that are similar in color to the bin generate weak edge signals

Modern 3D vision systems address positional ambiguity and occlusion by building a complete point cloud of the bin contents and planning picks from the point cloud, not from a 2D image. AI-based machine vision software trained on images of actual parts in actual bins handles the variability that overwhelms fixed-threshold algorithms, including classifying whether a given surface is graspable based on the surrounding context, not just the feature geometry.

The qualification for reflective surfaces: structured light 3D systems use modulated pattern frequency to filter out inter-reflections, but the sensor model and mounting geometry still need to be matched to the part material. This is not a plug-and-play problem. It requires engineering judgment upfront.

The failure mode here is a textbook example of why occlusion testing has to happen before a system is spec'd, not after it's installed. A carton wall touching a part edge is exactly the kind of edge case a lab demo never surfaces and exactly the kind that shows up in week one of production.

See how vision-guided robotics handles part variability in the field. Download the Robotic Guidance and Alignment Guide.

Challenge 3 — Camera Placement and Calibration Drive Cycle Time

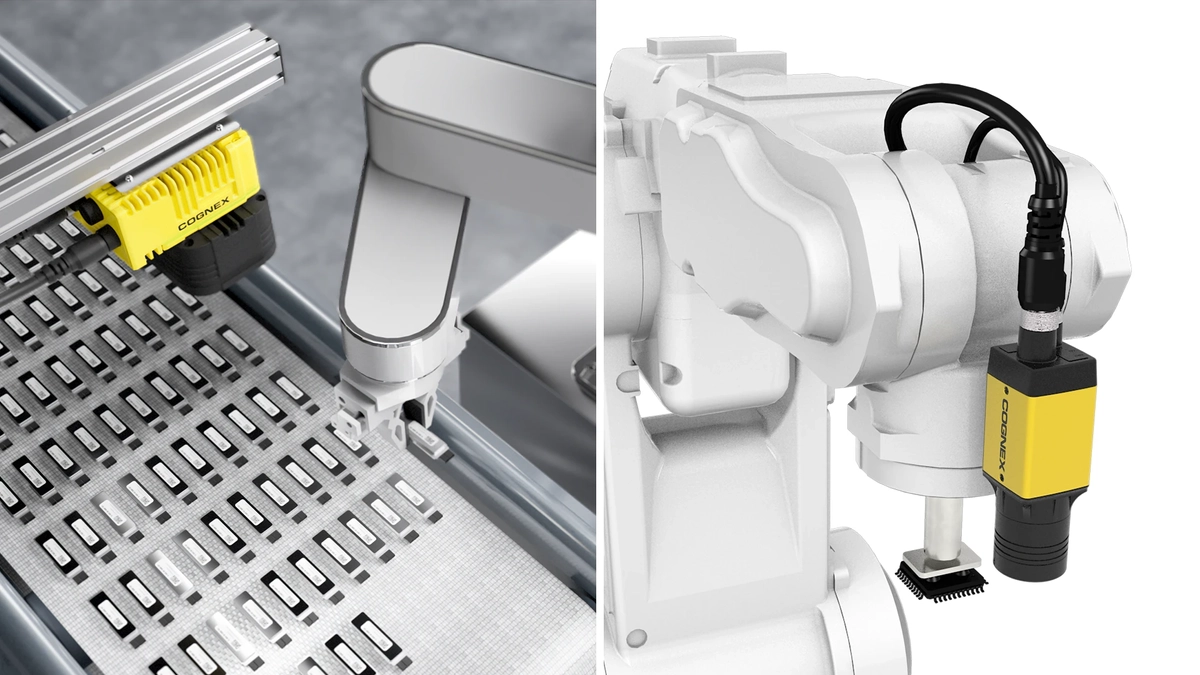

The choice between a fixed camera (eye-to-hand) and an arm-mounted camera (eye-in-hand) directly determines cycle time and calibration frequency.

This is one of the most underappreciated trade-offs in VGR design. Both configurations are legitimate and widely deployed, but they have fundamentally different performance profiles—choosing the wrong one creates problems that are expensive to fix after the cell is built.

Eye-to-hand (fixed) cameras stay mounted to the cell structure, add minimal cycle time since the robot moves while the camera is live, and hold calibration well, making them standard for bin picking, depalletizing, and conveyor guidance. Eye-in-hand (arm-mounted) cameras mount to the robot's end-of-arm, pause for image capture that can double cycle time, and need more frequent calibration as cable flex and vibration introduce drift — trade-offs worth making for precision assembly, weld guidance, and sequential inspection.

Hand-eye calibration establishes the precise spatial relationship between camera and robot coordinate frames, and it's often accurate after initial deployment—but it drifts. Vibration, thermal expansion, and cable tension shift the camera position by fractions of a millimeter over time, and for precision assembly with tight tolerances, that matters. Recalibration schedules need to be part of the system design from day one, not an afterthought.

Teams often underestimate the scope of this work: a simple grid calibration, sufficient for a stationary camera, isn't enough for an arm-mounted setup, since the camera's and robot's frames of reference are two different physical environments. Skip or rush it, and the failure is deceptive, the camera detects the part correctly but hands the robot bad coordinates, so the pick fails even though the vision system looks fine. That disconnect is often overlooked, since the camera "passing" its own detection test creates false confidence in the whole system.

Get the full breakdown of best practices in the Robotic Guidance and Alignment Guide.

Challenge 4 — When Should You Use AI vs. Rule-Based Machine Vision

AI-powered machine vision excels at performing vision-guided robotics tasks involving organic variation, surface anomalies, and flexible part recognition, but it performs poorly on tasks that rule-based algorithms handle reliably and cheaply. The highest-performing robotic vision systems use both, matched to the right task.

After years of rule-based vision systems failing on flexible, variable applications, the narrative shifted to "AI solves everything." It doesn't. And deploying AI where a deterministic algorithm would perform better creates systems that are harder to validate, more sensitive to training data quality, and slower to process.

Here's the practical breakdown:

When AI-based machine vision wins:

• Defect detection on surfaces with organic variation (brushed metal, cast parts, food products) where the difference between a defect and natural texture is contextual
• Flexible bin picking where part types change frequently and retraining is faster than reprogramming
• Assembly verification where parts vary in color, finish, or minor geometry across SKUs
• Presence/absence checks on cluttered scenes where position is unpredictable

When rule-based vision wins:

• High-speed barcode reading and traceability code verification
• Precision dimensional gauging where tolerances are fixed
• Edge detection and pattern matching on consistent, well-controlled parts
• Applications where auditability and determinism are regulatory requirements

The 2024 Deloitte and Manufacturing Institute data put the manufacturing labor shortage in stark terms: 3.8 million jobs needed between 2024 and 2033, with 1.9 million potentially unfilled. That structural pressure is driving companies toward automation faster than their engineering teams can evaluate it carefully. The risk is deploying AI-based vision in applications where it's overkill, under-trained, or inadequately validated and attributing the failure to machine vision rather than to the wrong tool for the job.

Machine vision software platforms that integrate both AI-based tools and traditional algorithm libraries give engineers the flexibility to use the right approach for each task, within a single system architecture.

Not sure which one your application needs? Download the AI vs. Machine Vision Whitepaper to see how to match the technology to the task.

Challenge 5 — Integration Complexity Stalls Deployments

The biggest barrier to successful vision-guided robotics deployment isn't the vision hardware, it's finding integrators who understand both the vision system and the robot controller well enough to make them communicate reliably in a production environment.

A machine vision camera that performs flawlessly in a test fixture can fail immediately when integrated into a live cell. The reasons are systemic:

• Coordinate system misalignment — the vision system reports part location in camera coordinates; the robot operates in world coordinates; a calibration error in the translation between them produces pick misses that look random but are actually systematic
• Communication latency — handshaking between the vision system and robot controller over Ethernet/IP, PROFINET, or GigE Vision protocols introduces timing variation that causes misses at high throughput
• PLC logic gaps — failure modes like a downstream rejection system left off after maintenance, or a "teach" feature accidentally trained on failed product, create quality escapes that are nearly impossible to diagnose without data logging

Vision systems with native robot communication libraries, pre-built integration routines, and cycle-by-cycle data logging reduce that burden significantly, and Industry 4.0/IIoT-standard platforms simplify the path to MES integration and real-time line-level visibility.

According to the Association for Advancing Automation (A3), integrating the robot, vision system, and real-world coordinate system remains one of the top barriers manufacturers cite when adopting VGR for the first time — and it's where current vision providers are investing, through better software architecture and pre-certified robot integrations.

That shift from hand-configured, code-heavy deployments to pre-built blocks is why integration timelines have compressed industry-wide, and why the integrator's platform choice matters as much as their engineering talent.

Do You Actually Need Vision-Guided Robotics — or Will Fixed Automation Do the Job?

Vision-guided robotics systems justify their cost when part variability, multi-SKU changeovers, or in-process inspection requirements exceed what fixed automation can handle reliably. Fixed automation remains the right choice for high-speed, single-SKU applications where parts arrive in consistent, repeatable positions.

Before specifying a VGR system, run through this decision framework:

Use fixed automation when:

• Parts arrive fixtured, palletized, or oriented consistently every cycle
• You run a single SKU indefinitely with no planned changeovers
• Throughput requirements exceed 200+ cycles per minute and flexibility isn't needed
• No inspection is required at the handling station

Use vision-guided robotics when:

• Parts arrive in variable positions, orientations, or from bins
• Your line handles multiple SKUs or expects product changes
• The robot needs to verify quality, presence, or assembly correctness during handling
• Defect types are "organic" in nature surface variation, cosmetic inconsistency, or natural material differences that fixed gauging can't classify

Use AI-based machine vision when:

• Defects are subjective or contextual (a scratch on brushed metal vs. natural grain)
• Part types change frequently and retraining needs to be faster than reprogramming
• The inspection task involves flexible, unstructured scenes

This framework doesn't replace engineering judgment. But it prevents the most expensive mistake in VGR procurement: buying a full AI-based 3D robotic vision system for an application that a well-lit 2D vision sensor on a conveyor would have solved in a fraction of the time and cost.

That last point is worth underlining: the rule-based vs. AI decision from Challenge 4 isn't something you can make from a spec sheet. It's a decision that gets validated or overturned by how the system performs against worst-case part variation in trial, not against the best sample on the shelf.

What Does a Well-Deployed Vision-Guided Robotics System Actually Look Like?

A reliable robotic vision system combines the right sensor technology for the application, purpose-built illumination, a validated calibration process, and software that integrates natively with the robot controller, all specified together before the cell is built, not retrofitted after.

The pressure to deploy is real. The cost of deploying the wrong system is also real. Getting lighting, part variability, camera placement, AI vs. rule-based selection, and integration architecture is what separates a VGR investment that compounds over years from one that creates a permanent maintenance headache.

Cognex offers application-specific guidance through its global engineering network. Request a demo to see how a vision-guided robotics solution maps to your specific application, parts, and production environment.
