Key Takeaways
- Think in layers, not devices. Marking, capture, sensing, and AI each solve one job. Value comes from connecting them, not from buying a better single device.
- Match the tool to the task. A sensor confirms presence, a barcode reader captures identity, and a vision system inspects. Rule-based vision tools reliably locate defects in predictable settings, while AI excels with variable, organic defects.
- Deadlines move, the mandate to trace doesn't. Compliance dates shift and vary by market and sector, yet regulatory and customer expectations for reliable traceability keep climbing. Building compliance in early protects margin, brand, and audit readiness, whatever rules apply to you.
What is traceability in manufacturing and why it matters
Traceability in manufacturing and logistics means following a part, batch, or product through every step of production and distribution, with a verifiable record at each point. With traceability data, companies can record where a part is in the supply chain, a vendor or machine that performed a specific process, and other valuable information.
Manufacturing and logistics companies use traceability information to:
- find the root cause of issues
- mitigate risk and liability
- reduce recalls and recall-related costs
- improve operational efficiency
- comply with regulatory requirements
- identify counterfeit products
The pressure for efficient, comprehensive traceability is real. In a 2024 survey of more than 750 quality leaders across the U.S., U.K., and Germany, 73% said they had issued a product recall in the past five years, and 48% reported more recalls than they saw five years ago. Many respondents put a single event between 10 and 50 million dollars, with worst cases approaching 100 million. The triggers are often avoidable. Labeling and allergen errors ranked among the top causes of food recalls across the US, Canada, UK, EU, Australia, and New Zealand. Manufacturers that invest in traceability readiness cut recall-related costs by up to 50% compared to those with inefficient traceability measures.
Expert insight: If customers could change one thing about traceability tomorrow, what would it be?
Amaresh Dash, Senior Applications Engineer: “It’s important to start with the data layers in the design stage of a machine vision application. Too often, people do not consider what data they need and how to collect it.
For example, let’s say I’m manufacturing automotive engines and collecting information with Data Matrix codes and reading it with a barcode scanner. If I get a customer complaint or run into an issue months later, I could tell you where, when, and who manufactured the engine, as well as where the raw materials came from. But all that needs to be decided at the outset.
In traceability, it’s important to establish your data needs rather than jumping right into selecting the right solution.”
The five layers of a traceability system
An end-to-end traceability solution works as five connected layers, not a stack of separate devices. Miss one layer and the chain breaks. A powerful inspection camera might be able to locate a defect but won’t be able to link that defect with the associated part unless another component can read the code and relay that information. Similarly, a successful barcode scan means nothing if that data never reaches your machine vision software and then your manufacturing execution software (MES).
| Layer | Question it answers | Example technology | Output to the next layer |
|---|---|---|---|
| Marking | What identity does this part carry? | A permanent or applied code | A permanent or applied code |
| Capture | What does the code say? | Decoded ID string | Decoded ID string |
| Sensing | Is a part present and where is it? | Trigger and position signal | Trigger and position signal |
| AI | Is this ambiguous case a pass or a fail? | Verified read or defect call | Verified read or defect call |
| Data | Where and when did this happen? | Unified traceable event record | Unified traceable event record |
Table mapping five traceability layers to the question each answers, showing data flowing from a marked code through reading, sensing, and AI interpretation into a unified MES, ERP, or EPCIS event record.
What is the difference between a sensor, a vision system, and a barcode reader?
This is the most common point of confusion on the plant floor, and it costs money when teams buy the wrong tool. Barcode scanners read codes to capture part or product information. Vision sensors and vision systems can broadly solve similar machine vision challenges, but differ significantly when it comes to application complexity.
Vision systems perform quality inspections like defect detection, classification, assembly verification and measurement/gauging. Vision sensors sit in the middle, handling simple pass-or-fail checks without full inspection depth.
Start with the core question, then choose the device:
| Device | Core question | Typical task | Data output |
|---|---|---|---|
| Vision sensor | Is this one feature correct? | Simple presence or pass/fail check, trigger | Boolean result (pass/fail, OK/NG) |
| Barcode reader | What does this barcode say? | Decode 1D, 2D, and DPM codes | ID string (serial number, product number) |
| Vision system | Is there a defect? What does this alphanumeric code say? | Measure, align, inspect, OCR | Rich inspection plus ID data (defect classification, scratch/stain) |
Comparison table distinguishing photoelectric sensors, vision sensors, barcode readers, and vision systems by the core question each answers, showing data richness rising from a simple on/off signal to full inspection and identification output.
Cognex expert insight: How do you describe the difference between vision sensors and vision systems to a plant manager who views them as interchangeable?
Amaresh Dash, Senior Applications Engineer: “Vision systems have advanced processors and powerful hardware that can handle complex applications, like multiple inspections or regions of interest in a single image. Our vision systems can learn to recognize new defects or new features, and separate subtle defects from acceptable anomalies using AI.

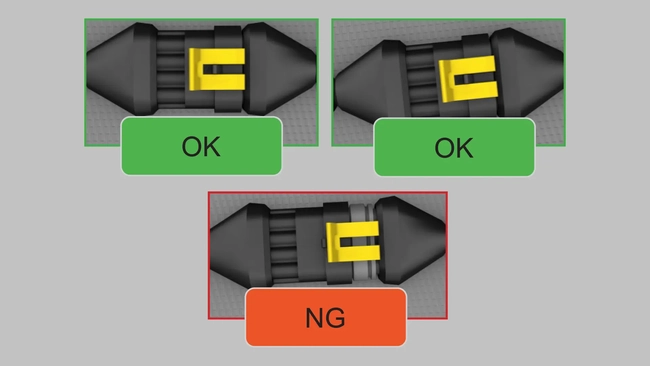

Vision sensors, on the other hand, are a cost-effective solution designed for greater ease of use. They are best suited for basic applications with little to no variations, like detecting the presence of a gap, measuring the feature of a part, or verifying a basic assembly.
So broadly speaking if you’re looking to solve a straightforward application a vision sensor is your ideal choice, while vision systems are better suited for complex applications.”
When do you need rule-based vision and when do you need AI?

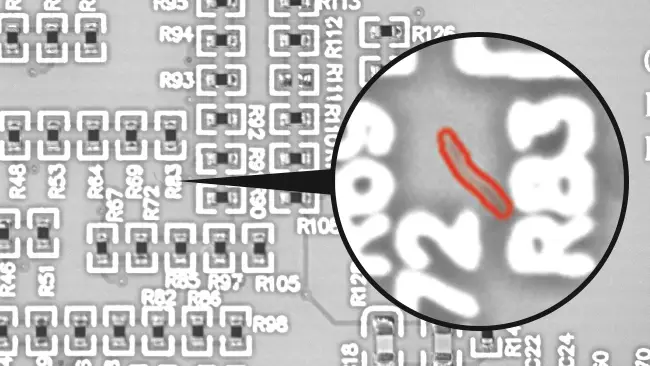

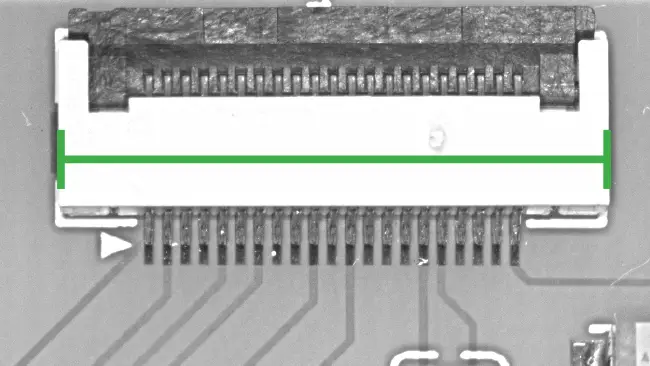

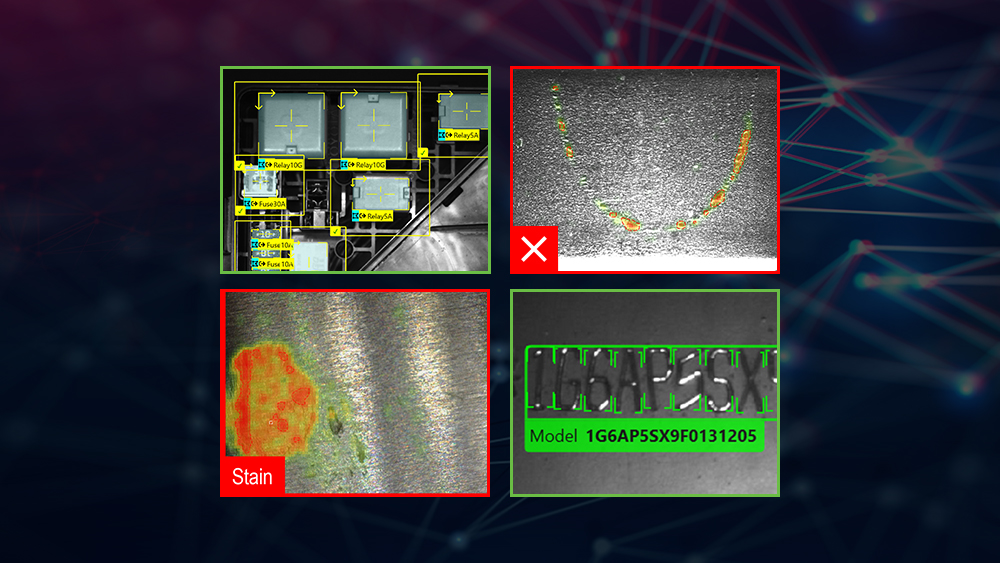

Rule-based vision excels at deterministic tasks with fixed criteria and little-to-no variability, like measuring a gap, checking the position of a label, or verifying an assembled component. AI is better suited for applications with organic variation or where “good” and “bad” results can look almost imperceptibly different from part to part. You need AI when defects resist fixed rules, not as a blanket replacement for reliable rule-based tools.
For example, on a brushed metal part, a scratch and the natural grain look almost identical to a rule-based system, so it either flags “good” parts as defective or misses the real defect. AI learns the difference from examples, the way a trained inspector would. The technology addresses defect detection beyond the reach of rule-based systems, but it isn't a universal upgrade.
| Factor | Rule-based vision | Deep-learning vision |
|---|---|---|
| Best for | Deterministic, fixed criteria | Organic, variable defects |
| Application Examples | Gauge a dimension, verify a known code, check label position | Separate subtle defects from visually similar backgrounds, verify complex, high-variability assemblies |
| Setup | Programmed parameters | Trained on labeled image sets |
| Compute Power | Lower | Higher, often edge GPU |
| Fails when | Appearance varies unpredictably | Training data is thin or unrepresentative |
Comparison table contrasting rules-based and deep-learning machine vision across best-use cases, examples, setup, compute needs, and failure modes, showing rules-based suits fixed criteria while deep learning suits variable, organic defects.
The same split applies to reading codes. AI-based decoding can read damaged or obscured codes that would otherwise be unreadable with rule-based tools. For everything deterministic, well-tuned rule-based solutions are easier and faster to validate.
Cognex expert insight: When is rule-based vision still the best choice and how often do you see teams investing in AI they don't need?
Daniel Lapidus, Senior Applications Engineer: “Many people think AI is a be-all, end-all to vision problems, while it’s just another vision tool in the toolbelt. In some cases, like with DataMan barcode scanners, AI tools can enhance existing capabilities to read damaged or obscured barcodes. But AI alone can’t solve image acquisition problems. The core function of machine vision will always be capturing a clear image.
I’ve also seen many people default to AI tools to solve problems, where rule-based tools would give the same or better results for much less effort. For applications like locating edges, measurement, and gauging, rule-based tools are much easier to setup and more consistent.
AI tools are great for qualitative data, like classification and locating defects, as well as things like reading where the standard rule-based tools might run into some issues if the presented data is not exactly what it's expecting. But for a lot of applications, people will try to force AI to solve the application where rule-based tools would be the best solution.”

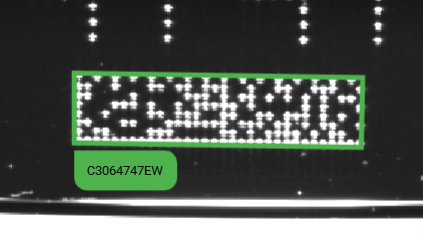

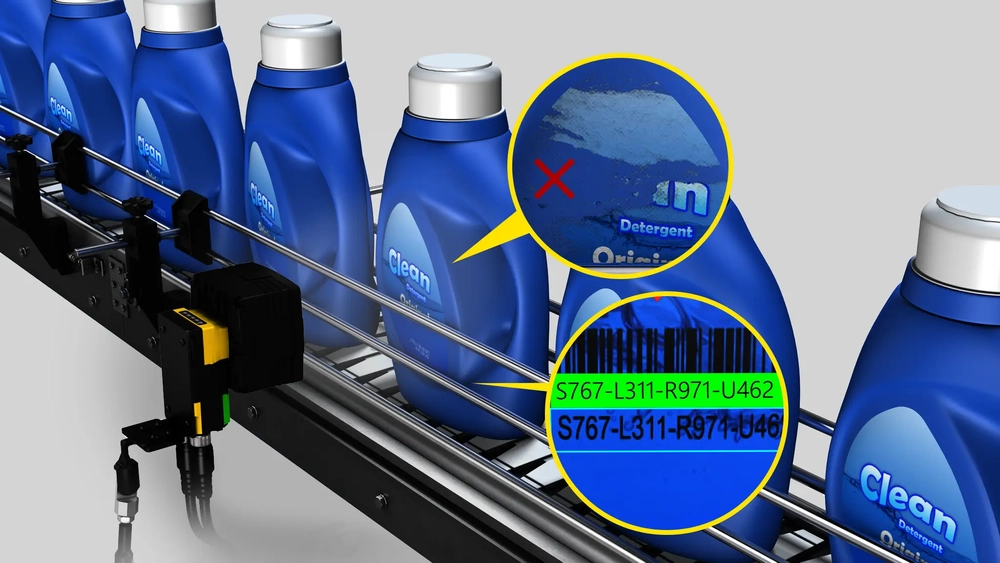

Should you pick a barcode scanner or a vision system to read codes?
Barcode scanners read 1D and 2D codes, either printed on labels or DPMs. Vision also inspects labels, checks position, or detects defects. Many lines run both. Barcode scanners excel at high-throughput applications while a vision system covers combined read-and-inspect tasks.
The decision hinges on how many jobs one station has to do. Reading codes at line speed favors a dedicated scanner. Combined tasks favor a vision system that reads the code and inspects the part in one trigger.
| Criterion | Fixed barcode reader | Vision system |
|---|---|---|
| Primary job | Reads barcodes fast | Reads characters, codes, and inspects |
| Throughput | Highest | High, with more processing per part |
| Added tasks | Limited, standards-based grading (SBG) | Label check, position, OCR, quality grading |
| Cost per station | Lower | Higher |
| Best fit | Pure scanning at line speed | Combined read-and-inspect stations |
Comparison table for choosing between a fixed barcode reader and a vision system to read codes, showing fixed readers win on pure-decode speed and cost while vision systems add inspection tasks such as label and position checks.

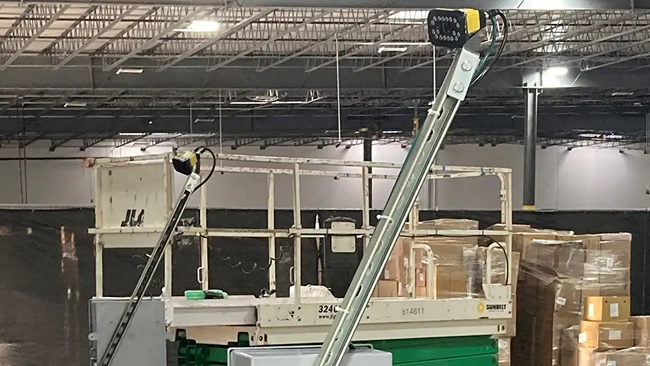

How US Logistics Solutions rebuilt inbound scanning
US Logistics Solutions, a Texas-based third-party logistics provider, replaced labor-intensive handheld scanning with hands-free barcode reading stations for inbound processing. Operators now place packages label-up on a conveyor and the readers handle the rest. The result was higher read rates, thousands of barcodes captured daily, and a quick payback on the investment.
The team had leaned on mobile terminals and ring scanners, which were slow and hard on operators at volume. Building on six Cognex modular vision tunnels already running elsewhere in the facility, they deployed fixed-mount DataMan barcode scanners at their inbound station. Operators simply unload and set packages on the conveyor, then review a daily report of total scans, read rates, and no-read causes, using stored images to run down any misses.
The outcome was measurable. Read rates improved 0.5%, the stations now capture multiple unique cartons per day that the old process missed, and the added throughput drove real revenue capture with a fast payback. Two stations are live, with more planned across other sites and new use cases like pallet-build scanning under review.
What is the return on investment (ROI) of connected traceability?
The ROI of connected traceability shows up in avoided recall cost, recovered throughput, and less manual labor. Recalls run 10 to 100 million dollars, and traceability readiness can cut that exposure in half. Recent manufacturing surveys report up to 20% gains in output from the same class of investment.
The math favors prevention. Cost of poor quality runs 15 to 20% of sales for many manufacturers, by the American Society for Quality's benchmark, so even the low end is 75 million dollars a year on a 500-million-dollar operation. Connected traceability attacks that number by isolating a defect to a lot in minutes instead of days, which narrows a recall from worst-case to targeted.
Cognex expert insight: What shift in traceability do you see coming that most teams are ignoring today?
Daniel Lapidus: “Factory automation is adopting universal scanning systems, something the logistics industry has been doing for years.
We’re seeing that a lot in data centers, where there’s a variety of different memory units, hard drives, solid state drives, and other products. Data center customers want to instantly read all data on a device, such as serial numbers, part numbers, and manufacturing information.
Customers need a system that can collect data from different types of codes regardless of where they are on the product and interpret that information. We’ve been using OneVision to develop applications that can parse and collect that information in a way our customers can consistently use.
The solution will centralize different codes and information across products, making it easier for data center customers to adapt to new products. It will provide a dramatic productivity increase. Customers won’t have to waste time and resources individually labelling and tagging new products that come into their facility. Instead, they will be able to put that information into a universal scanning system and instantly access the data.”
Bringing scanners, sensors, and AI systems together
Scanners, sensors, and AI systems deliver the most value when they feed one shared record instead of operating as islands. Marking, capture, sensing, and AI each solve a part of the problem. The data layer ties them together. Treat traceability as an integrated architecture, and a flagged lot becomes a two-minute query instead of a two-day scramble.
Start where the pain is sharpest, one station, one clean layer at a time, and connect each new read into the same record. That's how single-point solutions become product traceability technology that scales with your needs.
