Key Takeaways
- A sub-5.5% false reject rate over 10,000 parts is the sign-off benchmark, but the costlier failure is usually the opposite: accepting bad parts, not rejecting good ones.
- Retrofit timelines run 2–3 weeks (simple) to 6 months (deep learning) camera count barely matters. Incomplete upfront defect and part-variation info is the real delay driver.
- The most common validation mistake: testing against outdated "golden samples" or a single product variant, so systems pass validation but fail once they see real production variety.
Successful machine vision integration starts with looking beyond the camera itself.
That sounds backward, but it happens all the time on existing lines. Teams invest in a powerful industrial machine vision camera, mount it where space allows, reuse whatever lighting is already there, and expect software to clean up the rest. Then the false rejects start. Operators lose trust. The project that looked easy on paper turns into a workaround.
Integrating a machine vision camera into an existing production line is rarely about the camera alone. It's about optics, lighting, trigger timing, PLC (programmable logic controller) communication, line speed, part presentation, and the people who will run it every day.
If you're planning a retrofit, three ideas matter most:
- Start with the inspection task, not the camera spec sheet. Resolution alone won't solve presentation, lighting, or variation problems.
- Design around line constraints. Space, vibration, throughput, and legacy controls shape the solution more than any single component choice.
- Chase fewer false rejects and less downtime, not the longest feature list. A system that operators trust creates value faster than one with more capabilities than the job requires.
The role of a machine vision camera in a production line
A machine vision camera captures images that software uses to inspect, measure, identify, or guide action on an automated line. The camera is one part of a larger inspection system that also includes lighting, lenses, software, communications, and control logic. Additionally, the camera depends on stable lighting, the right lens, and accurate triggering, to provide a clean pass-fail decision path back to the PLC, robot, or reject mechanism.
Typical retrofit use cases include presence and absence checks, defect detection, OCR and code reading, barcode verification, measurement and gauging, robot guidance, and traceability inspection. If your line needs to confirm label placement, read part marks, or detect surface flaws, the real question isn't which camera to buy, it's how the full system will perform under real factory conditions.
Why do retrofit projects fail on existing lines?
Most retrofit failures happen because teams treat integration like a hardware swap instead of a process to redesign. Existing lines carry hidden constraints, and vision systems expose them fast: legacy PLCs with limited communication options, poor part presentation, inconsistent ambient light, tight mounting space, line vibration, product variation that rule-based tools struggle to classify, and no baseline data on current defect or false-reject rates.

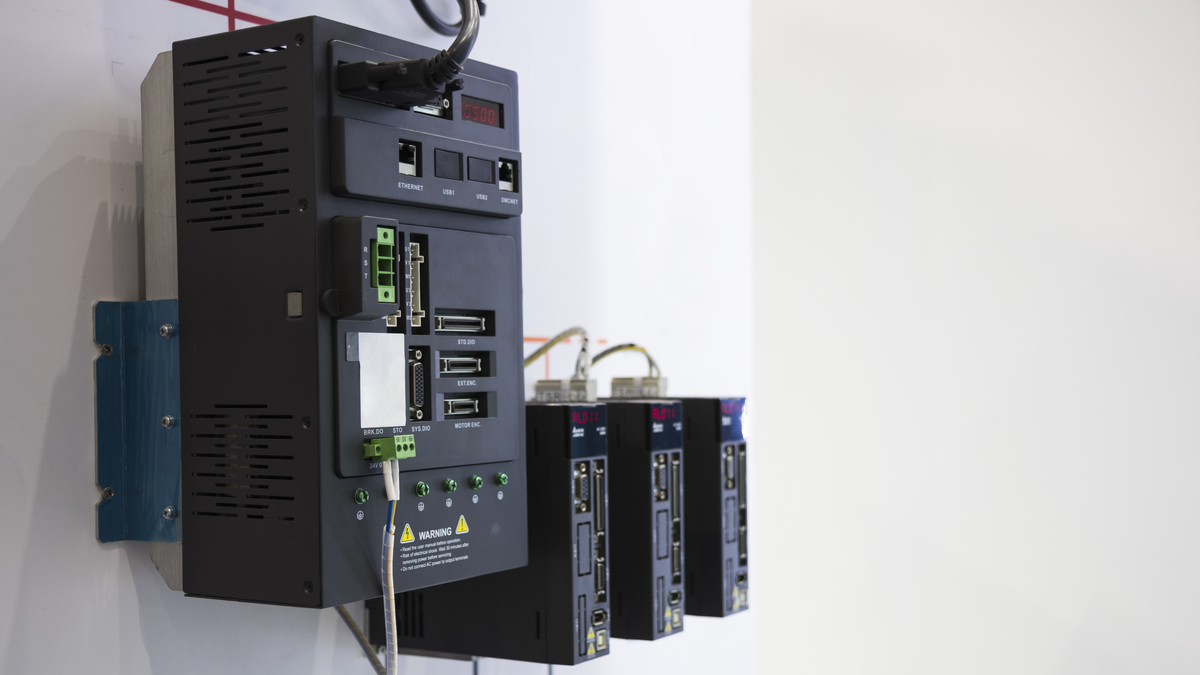

Bridging legacy PLCs in practice. Older PLCs were typically built to handle a simple OK/NG signal through basic I/O. Modern manufacturers usually want more images, date codes, and lot codes, data the original PLC was never designed to pass along. "We have to add a secondary PLC just to collect the data and the information for our vision system, but at the same time, they can keep their existing PLC for the rejection system," explains Edison Voon, Senior Application Engineer at Cognex. The original controller keeps doing what it does well; a secondary PLC handles the newer data layer. It's handled case by case, often alongside a systems integration partner.
There are three common bridging methods, each with a tradeoff, according to Brent Keppel, who has spent over a decade as a systems integrator before moving into vision applications engineering. “Discrete IO is simplest but limited by signal count. Many smart cameras offer only a handful of trigger inputs and discrete outputs, which caps out how much data can pass through. Serial carries more data but hits speed limits at volume. Gateways offer the most flexibility but add panel space, configuration time, and a new component to maintain, so most integrators reach for one only when boxed in by rigid existing equipment. Third-party TCP-based IO modules offer a middle ground, letting cameras read and write additional IO over a standard connection without the added complexity of a full gateway.”
Industry discussion around automation, including reporting from the Association for Advancing Automation (A3), points to a consistent theme: lighting, part presentation, and system specification often matter more than the headline camera spec.
→ Download: Cognex's Inspection & Defect Detection Guide Learn how machine vision streamlines quality control, detects defects with precision and speed, and helps minimize scrap, rework, and costly recalls
How do you choose the right machine vision camera system during the camera integration process?
The right system matches the inspection task, production speed, environment, and control architecture. Start with three decisions.
- Define the inspection objective. "Improving quality" is too broad. A target like "detect missing caps at a defined line speed with a specific false-reject tolerance" gives engineering teams something to design against. Document the defect or condition to detect, pass-fail thresholds, required cycle time, product mix, and what happens after a failure signal.
- Match the vision type to the problem. Use 2D vision for flat features, labels, printed text, or presence checks to lower cost and faster deployment, but it struggles with height variation. Use 3D vision when height, shape, pose, or surface geometry affects the result, providing better accuracy for depth-dependent tasks, but higher complexity and setup. 3D is especially useful for bin picking, robotic guidance, or any task where part positions vary from unit to unit.
- Select the supporting components early. The camera gets the attention, but lighting and optics usually determine success. Evaluate lighting, lenses, working distance and field of view, trigger method, enclosure needs (such as IP-rated housings), and communication protocols like Ethernet/IP or PROFINET.
How do you integrate a camera without major downtime?
Treat integration as a staged deployment: validate offline, test communications before installation, and schedule a short cutover window instead of debugging on live production time.
Audit the line. Measure space, product flow, line speed, reject timing, and control interfaces. Confirm that the line can present parts consistently enough for vision.
Collect good and bad samples. Build an image set with real-world variation, including edge cases and different SKUs which are especially important for AI-powered tools.
Run a feasibility test. Test with production-like lighting, working distances, and motion conditions. Bench tests that ignore blur or vibration create false confidence.
Validate integration points. Confirm trigger timing, PLC signals, reject logic, and data logging before installation. If cameras will share a network with PLCs and other OT systems, loop in IT/OT security early.
Install in parallel. Mount the system and monitor results before it controls the reject mechanism; this builds the operator's trust and exposes missed variables.
The most common mistake here is relying on old golden samples to define "good" and "bad." "The biggest mistake I see the customer make is they are using a golden sample from years ago," says Edison Voon. "The condition is different from the fresh part that's coming from the production line." This is especially visible in metal parts, where an oxidized old sample can show a very different contrast profile than a part fresh off the line today.
A related mistake, per Brent Keppel: not testing against enough variety. "One of the biggest mistakes I often see is not presenting the camera with a variety of samples that it will see in normal production," he says. Edge cases near the good/bad boundary are what reveal where that line actually sits. “On multi-SKU lines, teams often validate against one product style and assume the rest will behave the same way; an 8-, 12-, and 16-ounce version of the same product are each worth testing individually.” He also recommends starting image collection at the moment the camera is mounted, even before the system is switched on. “It gives the team room to tune tools before the more disruptive validation stage, instead of a slower cycle of turning the system on, watching it fail, and tweaking.”
Train operators and maintenance teams on what drift looks like, how to clean optics, and when to escalate.
How long does this take?
Simple applications, single- or multi-camera, typically run 2 to 3 weeks from audit to go-live; complex inspections stretch to 4 to 6 weeks; deep-learning systems often take 3 to 6 months. Application complexity drives timeline more than camera count. Brent Keppel's own numbers, from over a decade of integration work, track closely: a standard smart camera system averaged about 8 weeks total including hardware lead time, with only 1 to 2 weeks of actual vision development and roughly a week for installation.
Custom PC-based projects ran longer, 12 to 14 weeks. On multi-camera systems, identical inspections add negligible time, but distinct inspections per camera can scale the timeline roughly with camera count. In Brent’s experience, the single biggest driver of delay is incomplete upfront information: unclear defect definitions or unspecified part variations that surface mid-project.
For simpler applications, a vision sensor may deploy faster than a full vision system. Vision sensors fit presence/absence and orientation checks on parts with limited variation where high precision isn't required and simple enough that end users can often build the application themselves. Brent draws the line similarly: “vision sensors suit a single, simple task like confirming a bolt is present or counting vials in a tray. Once an application needs multiple dependent inspection steps, custom HMI, or data extrapolated from other features, it belongs in full vision-system territory.”
Which technical issues create the most false rejects when deploying a machine vision camera?
False rejects usually come from unstable imaging conditions, not bad software. If your images vary more than your parts do, results will drift.
- Lighting instability is often the deciding factor in retrofit success; reflections, shadows, and poor contrast can make a good algorithm fail.
- Motion blur and trigger timing matter on high-speed lines, where exposure time and encoder input matter as much as the camera itself.
- Inconsistent part presentation, parts that rotate, wobble, or overlap, often need a mechanical fix rather than a software one.
- Environmental stress, from dust and washdown to vibration and temperature swings, changes performance over time, so housing and mounts need to match the environment.
What terms do buyers need to understand when integrating machine vision cameras on their production line?
OCR (optical character recognition) lets a vision system read printed or marked characters for lot codes, expiration dates, and traceability.
AI-powered defect detection uses trained models to catch complex or variable defects that rule-based tools may miss. This is useful when products show natural variation in texture or surface. It also cuts setup time: "For simple applications, we sometimes require a lot of additional tools and fine-tuning," says Edison Voon. "But now with the AI classification tools, we just need to collect the image and label it... we reduced the deployment timeline for one week, down to two to three days."
Barcode reading confirms code content; barcode verification checks print quality against a standard. Multispectral and thermal imaging capture information beyond visible light, useful where surface contrast is poor.
How do you build the ROI case for implementing machine vision cameras on existing lines?
The strongest ROI case ties the system to measurable losses and gains: labor reduction, yield improvement, false-reject reduction, throughput, traceability, and downtime.
| ROI factor | What to measure | Why it matters |
|---|---|---|
| Labor reduction | Manual inspection time per shift | Shows direct cost savings |
| Yield improvement | Scrap and rework rates | Quantifies quality gain |
| False reject reduction | Baseline false-fail rate | Protects throughput and trust |
| Throughput | Units per minute, before/after | Links inspection to line performance |
| Traceability | Read rate, data capture success | Supports compliance |
| Downtime | Integration and maintenance hours | Reveals total cost of ownership |
Payback period is worth modeling honestly rather than assuming a universal number. In markets with lower labor costs, ROI on labor savings alone can take longer to materialize payback tends to hinge more on the cost of a missed defect. When the product is high-value and an undetected defect risks a recall, that risk-avoidance case can outweigh labor savings entirely, regardless of region.
For a concrete benchmark: Brent Keppel used a threshold of a false reject rate under 5.5%, validated over an extended run, typically up to 10,000 parts or a continuous 8-hour run, as one standard marker of a completed, successful deployment. On the labor side, a line with a manual inspector can often see payback within six months to a year once a single camera frees that person up for other tasks.

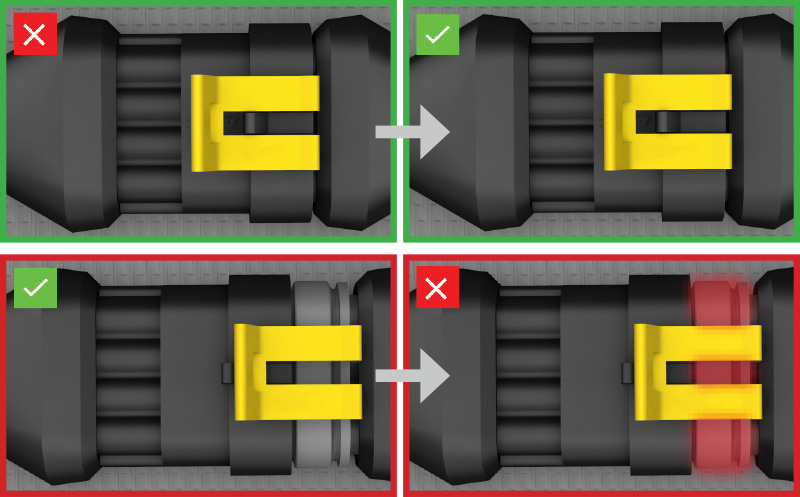

But Brent points to a bigger risk sitting on the other side of the equation: not over-rejecting good parts, but under-catching bad ones. "In my experience, the biggest gains are not false reject reduction, but false acceptance reduction," he says. “Systems that seem to underperform are often not failing indiscriminately; they're missing the specific defects they were built to catch.” He's seen this lead to entire shipments refused by an end customer, across packaging, automotive, and food and beverage alike. A cost that doesn't always show up in a labor-savings ROI model but is often the bigger number in practice.
→ Download: Cognex's Inspection & Defect Detection Guide Learn how machine vision streamlines quality control, detects defects with precision and speed, and helps minimize scrap, rework, and costly recall
How should teams plan for scale and support for machine vision integration?
Choose systems that scale across SKUs, sites, and future automation goals: standard industrial protocols, support for connected factory data flows, centralized image storage, role-based access and audit trails, and training plans for the people who'll run it. Platforms that combine rule-based tools with AI, and support a range of cameras and components, help you adapt to an existing line rather than replacing the whole system when requirements change.
What does good integration look like in practice?
Good integration produces stable images, repeatable decisions, and operator confidence. The line runs at target speed; the PLC receives reliable pass-fail signals, and engineering can expand the system without starting over.
That outcome depends on discipline more than hype: define the task clearly, fix presentation issues early, test with real samples, validate lighting, and train the people who own the line after go-live. A retrofit works when the inspection system fits the process, not when the process gets forced around the camera.
→ Download: Cognex's Introduction to Machine Vision Guide - Learn how machine vision inspects hundreds of parts per minute, and see key use cases across quality control, part verification, and defect detection
Practitioner insights draw on interviews with Edison Voon, Senior Application Engineer at Cognex Malaysia, and Brent Keppel, Senior Applications Engineer with over a decade of experience as a systems integrator.
