Key Takeaways
- 2D vision can't evaluate depth or which part sits on top of another, exactly what random bin picking requires.
- 3D machine vision captures point cloud data across the X, Y, and Z axes, giving robots the spatial data to pick reliably from cluttered bins.
- Choosing a system starts with the full application, not just the sensor. Geometry, surface finish, bin structure, cycle time, and gripper strategy all work together.
Most manufacturers troubleshoot bin picking failures by tweaking lighting or blaming the gripper. The real issue usually sits deeper: the camera never had the depth data it needed. Give a robot a flat picture of overlapping, reflective parts, and no software enhancement will make it pick reliably.
What is bin picking in robotics?
Bin picking is the process of using a robot with vision systems to identify, grasp, and remove individual parts from a container where those parts sit randomly oriented or overlapping. It's one of the hardest problems in industrial automation, since parts in a bin can arrive in unpredictable orientations.
Industry groups typically break the task into structured, semi-structured, and unstructured categories. Unstructured, or random, bin picking is the hardest case, and it's the scenario where 3D machine vision can provide significant value.
Why does traditional 2D vision fail at random bin picking?
Traditional 2D vision fails at random bin picking because it only captures a flat image along the X and Y axes, with no reliable way to measure depth or separate one overlapping part's edge from another.
Picture a bin of metal brackets tossed in at random. A 2D camera can find edges and shapes, but it can't tell which bracket sits three inches above the others or whether it's tilted toward the robot. Integrators have worked around this with vibratory feeders or specialty containers, which cost capital and floor space without fixing the core issue. A new part geometry can still require an entirely new mechanical setup, the same bottleneck behind mispick rates whenever a new SKU gets introduced.
How does 3D machine vision improve bin picking accuracy in robotics?
"A simple comparison is that 2D vision is like looking at a photograph, while 3D vision is like reaching into a box with your own hand," said Adrien Ville, Applications Engineer, Customer Success at Cognex. "A photo shows where something appears, but not its depth, tilt, or whether another object partially covers it. That missing depth context matters in bin picking. 2D vision provides X and Y location and sometimes basic orientation, but it can't fully describe a part's Z position or 3D orientation when parts overlap, interlock, or sit at different heights. 3D vision adds that depth by projecting a light pattern, analyzing its deformation, and building a 3D point cloud, helping the robot understand position, rotation, grasp point, and approach angle, even when parts are stacked, tilted, or partially occluded."

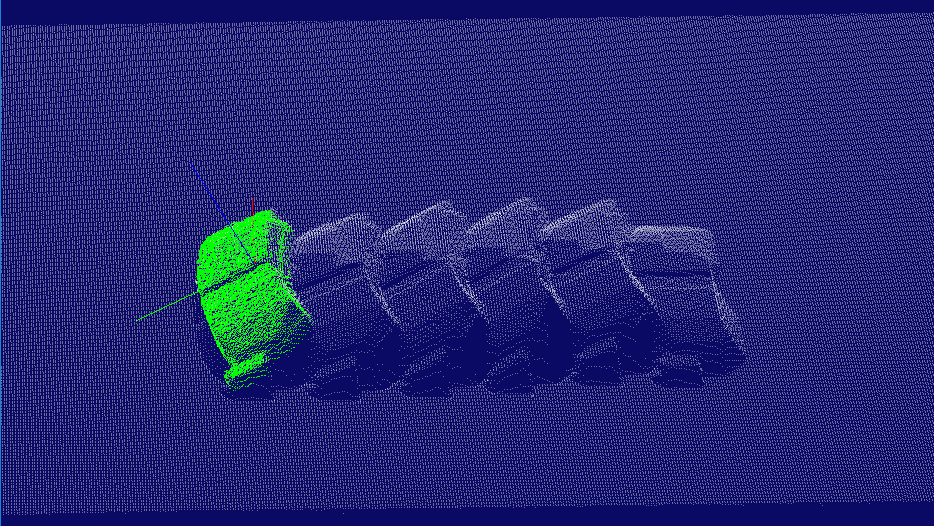

That point cloud lets a robot calculate a collision-free grasp path instead of guessing from a flat image, isolating parts and selecting the safest grip point. Most systems rely on stereo vision, structured light, or time-of-flight sensing, each trading off differently between accuracy, speed, and lighting sensitivity, according to the Edge AI and Vision Alliance.
How do reflective and irregular surfaces affect 3D bin picking?
Reflective, transparent, and irregular surfaces remain among the hardest cases in bin picking because they distort or scatter the light patterns that many sensing methods depend on. Ville points out that detection is only part of the challenge.
Non-experts often focus on part detection, but the robot also needs a valid, accessible picking position and a collision-free gripper path. Symmetrical geometry and occlusion are commonly underestimated, since parts can look identical from different orientations, especially when key features are hidden. Successful random bin picking requires accurate 3D sensing, part analysis, pose estimation, gripper selection, and an understanding of how geometry and material properties change under occlusion.
How does 3D bin picking impact throughput and labor costs?
3D bin picking addresses three big costs tied to manual bin picking: injury claims from repetitive reaching, turnover in demanding roles, and the throughput ceiling of human pick rates.
Manual bin picking is repetitive and dependent on staffing levels that fluctuate with the labor market. A vision-guided robot doesn't call out sick and doesn't slow down late in a shift. The technology also serves manufacturing and logistics differently: manufacturing prioritizes precision for assembly, whereas logistics prioritizes speed and adaptability across more SKUs.
That shift from manual handling to reliable automation is already underway in production environments. For example, BOS Innovations used Cognex 3D machine vision to automate bin picking of randomly located, reflective zirconium rods, increasing productivity, reducing processing times, eliminating image noise, and providing a stable target location for the robot. They initially tried 2D vision for the application but found that 3D technology delivered more consistent results.
“We tried solving the bin-picking application with 2D machine vision and a laser, but we did not see the level of robustness we would be proud of. We pivoted halfway through and selected the In-Sight 3D-L4000 from Cognex for accuracy and speed,”
Alex Klarenbeek, Senior Project Lead for Vision Systems at BOS Innovations.
Comparing manual, 2D, and 3D vision-guided bin picking
| Manual Bin Picking | 2D Vision-Guided Picking | 3D Vision-Guided Picking | |
|---|---|---|---|
| Handles random part orientation | Yes, but inconsistent and slow | Limited, needs presorting or fixtures | Yes, natively |
| Handles reflective or dark surfaces | Yes, but fatigue-prone | Often struggles | Improved, but still an active challenge |
| Requires custom tooling per part | No | Frequently | Rarely |
| Injury and turnover risk | High | Low | Low |
| Throughput consistency across shifts | Variable | Moderate | High |
What key terms should you know before evaluating a 3D bin picking system?
A few terms come up constantly and are worth knowing before comparing vendors.
- Point cloud: Data points in 3D space representing an object's surface.
- Occlusion: When one object blocks a sensor's view of another, common in packed bins.
- Grasp pose estimation: Calculating where and at what angle a robot should grip a part.
- Cycle time: The total time for one pick-and-place sequence, a key throughput metric.
How do you choose the right 3D vision system for bin picking?
Ville recommends starting with the full application rather than the sensor alone.
The biggest change is evaluating the full application earlier, before selecting the sensor or setting cycle-time expectations. Customers should weigh part geometry, material properties, surface finish, bin structure, cycle time, and gripper strategy together, since treating bin picking as only a vision problem often leads to late-stage issues when a robot cannot find a reliable grasp point or the sensor cannot acquire usable 3D data. The better question isn't whether the vision system can find the part. It's whether the complete system can see the part, understand its pose, reach it safely, and grasp it reliably within the required cycle time.
That framing also challenges a common assumption. Ville cautions against treating 3D vision as an automatic fix.
One misconception is that 3D vision automatically solves bin picking. It improves robotic capability, but performance still depends on whether the sensor can acquire usable data from the part. Reflective, transparent, or translucent surfaces can distort the projected pattern or prevent predictable reflection, reducing reconstruction accuracy. Even advanced software cannot compensate if the sensor cannot capture reliable dimensional information for dependable pose estimation and robot guidance. Faster robots and stronger software cannot overcome sensor delays or ambiguous part geometry, which is why you should evaluate geometry, surface finish, and cycle time together during design.
A few practical questions follow:
- How reflective or transparent are the parts? Specular surfaces need lighting tuned to reduce noise.
- How deep is the bin, with how much occlusion? Deeper bins demand higher-resolution point cloud data.
- What cycle time does the line require? Faster lines require balancing resolution with speed.
- Does the application need to scale across part types? AI-driven path planning reduces reprogramming when SKUs change.
- What's the integration path with existing robots? Protocols like GigE Vision simplify deployment.
Where is bin picking technology headed?
3D bin picking is evolving quickly, particularly around AI models that generalize across part types without extensive retraining and sensors that handle reflective materials more consistently. Industry reporting on a joint solution from Fizyr, Cognibotics, and Zivid claims 2,000 picks per hour at 99.5% accuracy, a marker of where the state of the art sits today.
Keep exploring 3D machine vision
3D machine vision gives robots the depth perception they've always lacked for random bin picking. As Ville's comments make clear, the sensor is only one part of a system that also depends on part geometry, gripper strategy, and cycle time working together.
Explore how 3D machine vision systems fit into broader automation strategies.
Frequently asked questions
What is bin picking?
Bin picking is a robotics application in which a robot equipped with sensors and cameras identifies and selects an item from a bin or container, then transfers it to another location for further processing or packaging, according to the Association for Advancing Automation (A3). The task is typically grouped into three categories: structured, where items sit in a consistent, predictable pattern; semi-structured, where some variation exists; and unstructured or random, where parts are piled with no organization at all. Industry coverage from Inbolt describes random bin picking as a complex process that requires locating the easiest part to pick, calculating its position and rotation, planning a collision-free robot path, and executing the movement without disturbing the surrounding pile. That makes unstructured bin picking the hardest of the three categories and the one that benefits most from 3D vision and AI-driven grasp planning.
How does 3D machine vision improve bin picking accuracy in robotics?
3D machine vision improves accuracy by giving a robot depth information that 2D imaging cannot capture, allowing it to judge a part's orientation and position in three dimensions rather than guessing from a flat image. Systems typically rely on stereo vision, structured light, or time-of-flight sensing, each with different tradeoffs in accuracy, speed, and sensitivity to lighting, as detailed by the Edge AI and Vision Alliance. Pairing that depth data with AI-driven grasp planning allows a system to generalize across part variations rather than requiring a hand-coded rule for every possible orientation. Market analysis from Quintile Reports identifies breakthroughs in AI-powered 3D vision as a primary driver of adoption growth in this space through 2035.
How accurate are bin picking robots?
Accuracy varies widely depending on part type, clutter, and the sophistication of the vision and grasp-planning software involved. Academic research on bin picking has reported success rates ranging from roughly 50% to 90% for individual part types in cluttered scenes, with one self-supervised learning study measuring grasp rates as high as 96.6% to 99.8% under optimized conditions. On the commercial side, vendor case studies report even higher figures in production settings. Inbolt reports 98% picking success in production deployments, and industry reporting on a joint Fizyr, Cognibotics, and Zivid solution claims 99.5% accuracy at high speed. The wide range across these sources underscores that accuracy is highly application-specific, not a single fixed number.
What are the leading vision sensors for robotics integration?
Rather than a single "best" sensor, the leading approaches to robotics integration fall into three sensing categories: stereo vision, structured light, and time-of-flight. According to the Edge AI and Vision Alliance, structured light delivers particularly high accuracy at close range; stereo vision offers a simpler, more cost-efficient architecture that works well in ambient light, and time-of-flight sensors provide real-time performance and longer working range at the cost of some resolution. A 3D depth camera selection guide frames the choice around deployment environment, working range, target material, and integration needs rather than a fixed sensor hierarchy. Beyond sensor type, compatibility with standard protocols like GigE Vision matters for how easily a system integrates with existing robot controllers and factory networks.
