6 PCB Defects Your AOI System Should Be Catching (And Probably Isn’t)

Seventy percent. That's the share of boards flagged as "Not Good" by some AOI systems that turn out to be perfectly acceptable after a human takes a second look.

In electronics manufacturing, an automated inspection system deployed to reduce human error may be sending many of its rejects to a manual rework station unnecessarily. Throughput drags, labor cost climbs, and the false sense of control adds up without a single quality benefit.

The root problem isn't the concept of Automated Optical Inspection (AOI). The concept is sound, and modern systems deliver defect detection rates above 98%. The problem is the gap between a well-configured system and a poorly tuned one, and the six categories of PCB defects those systems are built to catch. those systems are built to catch.

What Is Automated Optical Inspection for PCBs?

AOI is a non-contact method using high-resolution cameras, controlled lighting, and image-processing algorithms to detect visual defects on printed circuit boards, comparing captured images against a known-good reference or CAD/Gerber data and flagging deviations beyond defined tolerances.

AOI deploys at multiple stages: bare board inspection, solder paste inspection (SPI) before component placement, post-placement inspection, and post-reflow inspection after soldering. Each stage catches a different category of failure. A defect missed at SPI typically becomes more expensive at post-reflow, and one that escapes functional test costs exponentially more to fix.

Modern AOI systems integrate optics, motion control, and vision software into a unified platform. Advanced systems add 3D machine vision to measure solder joint height and coplanarity, catching lifted leads and skew that flat 2D machine vision systems can't reliably resolve.

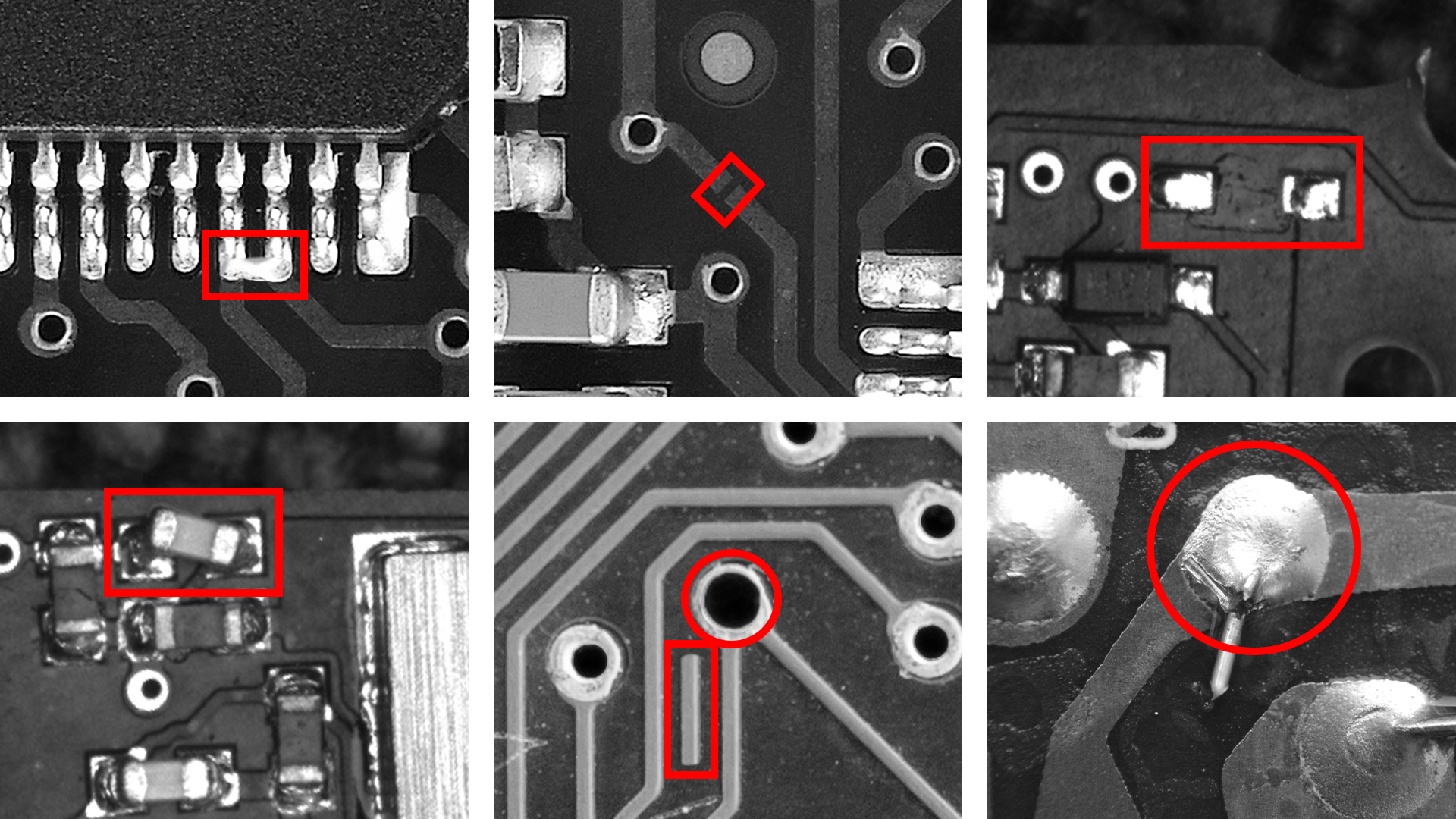

The defect landscape in PCB manufacturing is wide, but six categories account for the vast majority of failures in Surface Mount Technology (SMT) production. IPC-A-610, the governing standard for PCB acceptability, classifies these across consumer, industrial, and high-reliability tiers, and detection requirements scale accordingly.

Solder bridges form when excess solder connects two adjacent pads, shorting them usually from paste over-deposition, stencil misalignment, or an off-reflow profile. AOI detects unexpected conductive paths using contrast-based analysis; angled, multi-directional lighting makes bridges visually distinct even when narrow. This is a post-reflow target.

Open circuits occur when insufficient solder leaves a lead electrically disconnected. Unlike bridges, opens are often invisible without precise measurement, and they typically originate upstream at solder paste printing. This is why SPI matters: catching a volume deficiency at paste print prevents a downstream electrical failure. Vision systems measure paste height, area, and volume against Gerber specs before a single component is placed.

Missing components a resistor, capacitor, or IC simply not placed are catastrophic functional failures that are straightforward to detect visually, through the absence of an expected optical signature at a known location. Outdated inspection programs that don’t reflect the current Gerber file are a primary source of both false positives and missed detections.

Component misalignment and skew occur when a part lands off-center, rotated, or shifted during pick-and-place. High-accuracy AOI detects positional deviations as small as 0.05mm far beyond human inspection at production speeds. 3D AOI adds coplanarity measurement, catching skew that flat 2D imaging misses, which matters most for fine-pitch ICs and large connectors.

Want the full breakdown of inspection specifications by component type? Download the Cognex Electronics Solutions Guide →

Spurious copper and pinholes are bare-board fabrication defects with unintended conductive material left after etching, or voids where material is missing. AOI catches them by comparing trace geometry against Gerber data; sub-pixel precision is industry practice for fine-pitch traces.

Solder joint quality failures cover insufficient volume, cold joints, voids, and tombstoning. Post-reflow 3D AOI measures solder volume, fillet geometry, and joint height. For hidden joints beneath Ball Grid Array (BGA) packages, X-ray is the only viable method AOI can’t see below the package.

Table comparing six PCB defect types by cause, inspection stage, and whether 2D AOI, 3D AOI, or X-ray is required. BGAs require X-ray; 3D AOI adds detection capability for opens and misalignment that 2D systems miss.

How Does AI Change PCB Inspection?

AI-powered machine vision shifts AOI from rigid rule-following to probabilistic defect classification. Traditional AOI compares each pixel against a reference image; any deviation above a threshold triggers a flag. Tighten the threshold and false positives surge; loosen it, and real defects slip through.

AI models trained on labeled images of defective and conforming boards learn the visual signature of defect classes, distinguishing genuine failures from harmless cosmetic variation solder oxidation that looks like a cold joint, flux residue that mimics a bridge.

The newest anomaly-detection approaches go further: trained exclusively on conforming images, with no labeled defect examples; they flag any deviation from a known-good board's appearance. These have demonstrated roughly 99.5% real-world accuracy across more than 50 global deployments, at throughput exceeding 1,100 units per minute handling high component density and combinatorial failure variety without engineers enumerating every defect class in advance.

Lighting interference is the most common, least-diagnosed cause of inspection degradation in PCB AOI. It doesn't fail loudly; it produces a gradual, inconsistent accuracy decline that looks like random system noise.

Venkateshwaran puts it plainly: "There is a saying in machine vision 80% of your application will be solved if you use the right lighting. The remaining 20% comes from camera optics or the algorithm." Thiessen frames it as a configuration issue rather than a hardware one: "We look at hardware and don't look at things like testing the system, setting up the algorithms, the angle of the system, whether it's really looking into the region of interest. All these other aspects are ignored."

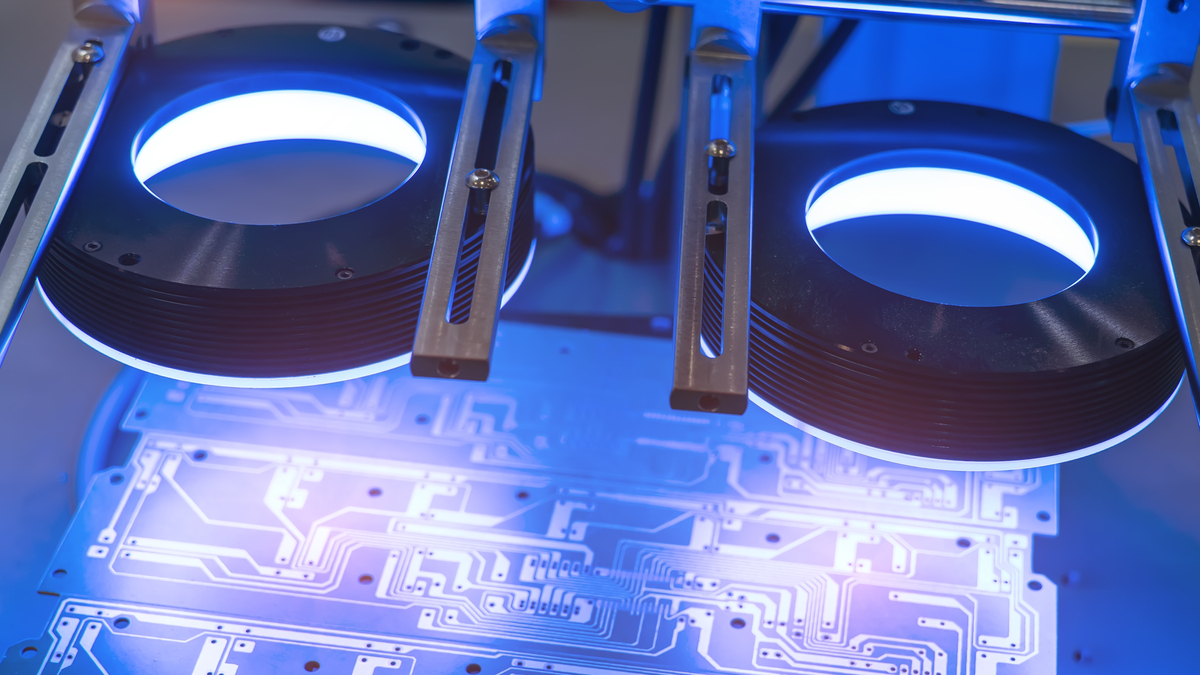

No single light source illuminates every defect condition equally. Solder joints are highly reflective; a light at the wrong angle generates specular reflection, saturating pixels, and washing out joint geometry. Coaxial lighting minimizes this by directing illumination perpendicular to the board, while angled or structured illumination emphasizes surface topology and detects height variation better.

Additional interference sources worth auditing:

• Ambient plant lighting. Overhead fluorescents and shop lights introduce variable, uncontrolled illumination. Enclosed inspection chambers eliminate this variable.
• Component shadowing. Tall components, capacitors, connectors, large ICs cast shadows across adjacent low-profile pads. Multi-directional illumination reduces shadow-induced blind spots.
• LED aging. LED arrays shift in spectral output over thousands of operating hours. A program calibrated at commissioning may drift measurably within 18 months without triggering any alarm.

When false positives climb, the instinct is almost always to adjust the thresholds. Venkateshwaran: "Once false positives come, operators immediately move to sensitivity adjustment, changing the threshold, changing the exposure without understanding the actual change in the product." Thiessen agrees the fix rarely holds: "Adjusting exposure may solve it temporarily, but not for the long term." Image fundamentals angle, region of interest, illumination type deserve scrutiny before the software settings do.

Programmable, dynamic lighting solves the single-source limitation by configuring different illumination for different board regions within the same pass high-angle oblique lighting for solder joints, coaxial lighting for bare traces, in the same cycle. Reviewing your machine vision lighting against the defects you're chasing is often the highest leverage change available.

What Causes Calibration Drift in PCB Inspection Systems?

Calibration drift is slow, invisible, and expensive: the gradual divergence between a system's operating parameters and the conditions under which it was originally calibrated, producing rising false positives and missed detections with no single identifiable failure event.

Venkateshwaran's analogy: "Think of buying a new car. Initially the wheel alignment is accurate, and the car goes perfectly straight. Eventually, after enough road imperfections, the alignment slowly drifts. You have to realign it to restore performance." Thiessen's is different: "It's like glasses getting dirty. You don't notice it happening. You realize it when it's gotten worse over time, and then when you clean them, you suddenly see clearly again."

The most common sources of drift:

• Thermal expansion. Camera housings and lenses expand as plant temperature rises through the shift, subtly shifting the focal plane. A program calibrated at a cold startup may be measurably off by midday.
• Reference board degradation. The physical "golden sample" of many systems compares against oxidizing and accumulates flux residue, drifting the baseline.
• Board revision mismatch. Minor trace geometry updates can invalidate legacy inspection programs tied to an old Gerber file — a common cause of false-positive spikes after a product change.
• Lens contamination. Flux vapor and solder particulate accumulate on lens surfaces, reducing contrast and resolution.

One approach addresses the Gerber mismatch at the root: embedding calibration references directly into the board design, so the inspection program automatically inherits each revision's geometry rather than comparing against a static master.

Drift requires scheduled intervention, not a reactive response. A calibration protocol covering thermal conditioning, reference board replacement, lens cleaning, and LED photometric verification is the discipline that keeps drift from accumulating silently.

How Does Camera-to-Robot Latency Affect PCB Inspection?

Camera-to-robot communication latency introduces positioning errors that compound across every cycle in a high-throughput line. If the trigger signal reaches the robot's arm milliseconds after it has already moved past the target position, the action executes against the wrong coordinate. At 500 to 1,000 boards per hour, small timing errors become systematic quality failures.

Two types of latency need separate management. Trigger latency is the delay between a board arriving at the station and the camera actually firing, controlled by hardware trigger configuration and the signal path from sensor to camera. Processing latency is the time needed to analyze the image and return a pass/fail decision; as resolutions scale toward 4K and 8K and multi-camera setups become standard, this becomes the dominant bottleneck.

Below 1 Gbps, standard CPUs handle the workload fine. Between 2 and 5 Gbps, CPU strain becomes measurable, requiring GPU or FPGA acceleration. Above 5 Gbps, host-CPU-only architectures are insufficient, and frame grabbers and system-level architecture changes become necessary.

Thiessen on why edge processing is gaining traction: "Traditional setups chain together many components of acquisition, transfer, processing, PLC communication, robot handoff each with its own bottleneck. Moving to edge reduces the number of handshakes and system boundaries, making setup simpler and root-cause analysis easier." Venkateshwaran cautions the constraint shifts rather than disappears: "Transfer latency is reduced, but the bottlenecks move to camera memory capacity, AOI patch file size, and heat dissipation."

Practical solutions:

• Edge processing. Move inference to the camera or a local edge processor rather than a central PC, cutting round-trip time and decoupling throughput from network congestion.
• Hardware synchronization. Use protocols such as IEEE 1588 PTP or GigE Vision trigger-over-Ethernet to align camera timing with robot motion without software-based delays.
• Parallel processing architecture. Multi-camera setups distributing tasks across simultaneous pipelines maintain throughput without accumulating serial latency.

Learn how Cognex vision systems address synchronization and high-throughput electronics inspection → explore 2D machine vision systems

Understanding where AOI fits, and where it doesn't matter as much as understanding what it detects. The earlier a defect is caught, the cheaper it is to fix: a paste volume problem caught at SPI might cost a few cents to correct, while the same defect surviving all the way to a field return can cost hundreds of times more.

Table showing that defect detection costs escalate dramatically with each successive inspection stage, from SPI (lowest) through functional test to field return (highest). Catching defects at SPI prevents cascading costs downstream.

The implication for operations managers: positioning inspection earlier and using SPI data to predict and prevent downstream AOI failures, beats optimizing only the post-reflow gate. The highest-value inspection investment is the one that stops defects from moving downstream.

Get the complete electronics inspection framework. Download the Cognex Electronics Solutions Guide →

What Should Your AOI Troubleshooting Checklist Include?

A structured troubleshooting protocol addresses the three system-level failure modes of lighting, calibration, and latency before they compound. The checklist below covers the highest-impact verification steps for each.

Lighting Interference

• Verify inspection chamber seals are intact and ambient light is fully excluded
• Check LED operating hours against manufacturer replacement intervals
• Audit illumination angle against component height profile; tall components may require secondary illumination
• Review false positive location patterns: clusters near reflective solder joints suggest specular reflection issues

Calibration Drift

• Compare current inspection results against the baseline false-positive rate recorded at commissioning
• Verify the active inspection program matches the current Gerber revision
• Inspect and replace the reference board on a documented maintenance schedule
• Run the lens cleaning protocol and re-verify photometric output after cleaning

Camera-to-Robot Latency

• Measure trigger-to-capture delay using hardware timestamping; anything above your system's specified tolerance warrants investigation
• Monitor CPU utilization during peak production; sustained usage above 80% signals a processing bottleneck
• Verify hardware synchronization protocol configuration software-based timing is a common source of jitter in high-speed lines
• Evaluate edge processing options if data throughput has increased since original system commissioning

Exploring inline sensing options? Check out vision sensors for lightweight, embedded inspection points along the line.

Putting It Together — From Defect Detection to Process Control

AOI works best when treated as a process control tool, not just a pass/fail gate. Every inspection event generates data defect type, location, frequency, time-of-day distribution, and that data is the signal your production process is sending about what's going wrong upstream.

Thiessen sees the shift already underway: "Right now, AOI shows you the defect at the end. In the future, it will be used as an input to prevent the next defect. You'll see a drift in production and adjust before it becomes a significant defect." Venkateshwaran frames it operationally: "Today, AOI acts as a standalone machine that only detects defects after they occur. When it is integrated, it can interact with the previous station and act before a defect happens." In a dispensing application, for instance, if bead size starts drifting, an integrated system communicates with the upstream station and corrects the process before an operator escalates. As Venkateshwaran puts it, "AOI evolves from a quality gate that only detects defects to a process system that prevents them."

An integration between your AOI system and your Manufacturing Execution System (MES) via IIoT data pipelines turns inspection data into actionable production intelligence. Rising solder bridge frequency toward the end of a shift suggests reflow oven temperature drift. Missing components clustering on specific board positions suggests pick-and-place head maintenance. Open circuits correlating with a paste lot number point to a supply chain issue.

Machine vision in a modern facility isn't a standalone inspection station; it's a sensor node in a broader Industry 4.0 data architecture. The competitive advantage goes to operations that close the feedback loop between what inspection finds and what production does next.

Cognex vision systems, machine vision software, and barcode readers provide the inspection, traceability, and data infrastructure to support that integration across PCB fabrication, assembly, and final test. It is the natural next step for operations ready to close the loop.

Practitioner insights draw on interviews with Dennis Thiessen, vision systems integration specialist, and Rajendran Venkateshwaran, machine vision applications engineer.
