Key Takeaways
- Capture a part’s true shape with millions of 3D coordinates, giving inspection software the depth data needed to identify geometric defects 2D imaging can miss.
- Compare scans directly against CAD models to replace slow CMM checks with fast, automated deviation reports that operators can review and act on quickly.
- Reduce scrap, improve worker safety, and maintain digital inspection records that support quality compliance across demanding manufacturing environments.
Even the highest-resolution camera on your line can miss certain shape-related defects. A 2D camera captures color and contrast beautifully, but it cannot always show whether a surface bulges outward or sits exactly where the CAD model says it should. That limitation gets expensive: a single missed flaw can trigger a recall or a scrapped batch of material that already cost thousands of dollars to produce. 3D point cloud technology closes that gap, giving manufacturers a full geometric map of a part instead of a picture of it.
What is a 3D point cloud?

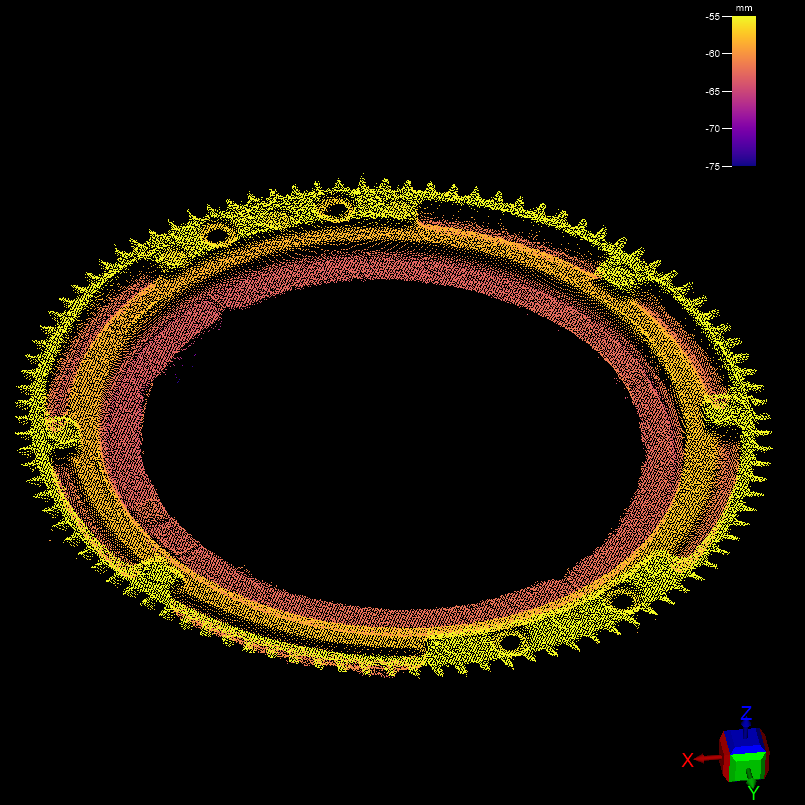

A 3D point cloud is a dataset of X, Y, Z coordinates that map every measurable point on an object's surface. Instead of pixels representing color, each point marks an exact spatial location, recreating a part's true geometry, including curves and surface deviations that a flat image cannot capture. That's the full set of coordinates, often numbering in the millions per scan, that metrology software measures against a CAD model.
Brett Krell, Senior Applications Engineer at Cognex, offers an analogy:
"This summer, I was at an airshow that had a night drone show. It was awesome. The drones would assemble in the air to depict different objects: an eagle, a flag, and a fighter jet. Each drone represents a data point on the 3D object being depicted, very similar to a point cloud.”
How do manufacturers use 3D point cloud data for inspection?
Manufacturers feed captured point cloud data into vision software, which aligns the data with a part's CAD model to generate a deviation map showing where the part deviates from design intent.
This CAD-to-part comparison replaces an old habit: eyeballing a printout and hoping a human catches the anomaly. An operator can review the machine-generated output and instantly know whether a part passed, without years of metrology training. Cognex 3D vision systems, for example, deliver that decision directly on the line.
Why are manufacturers replacing calipers and CMMs with 3D scanners?
Manufacturers are moving away from calipers and CMMs because those tools are slow and impractical for freeform geometries. A 3D scanner captures a full-part dataset in seconds and inspects every unit, not just a sample.
Traditional CMM / Calipers | 3D Point Cloud Scanning | |
|---|---|---|
| Contact with part | Physical probe contact | Non-contact |
| Coverage | Sample-based, single points | Full-part, millions of points |
| Speed | Minutes per part | Seconds per part |
| Complex geometry | Struggles with freeform surfaces | Captures curves and organic shapes natively |
| Operator training | Specialized programming expertise | Point-and-shoot interfaces |
| Fragile parts | Risk of damage from contact | Safe for soft or delicate materials |
Krell has seen this firsthand:
A customer was inspecting pizza crusts and needed help refining the settings in their vision software to get optimal results. It turned out they were scanning the crusts at a much higher resolution than needed for their inspection. Lowering the Y-resolution reduced the file size and solved the issue.
What 3D inspection looks like on the line
The shift from manual checks to automated 3D inspection is not just a theoretical improvement. KWD Automobiltechnik GmbH, an automotive parts supplier in Wolfsburg, Germany, needed to detect distortion in steel side panels and verify weld placement in real time.
By pairing 3D vision technology with Cognex vision software, KWD's system checks part position and confirms weld placement in real time, delivering better quality than manual inspection. That same need for inline decisions also explains why scan speed matters, but speed alone does not tell the full story.
How many data points can a 3D scanner capture per second?
Modern industrial 3D scanners capture millions of data points per second with micron-level accuracy, detecting deviations far smaller than a caliper or the human eye can detect.
That speed is useful shorthand, but real-world acquisition time depends on the part, the surface, and the resolution required for the inspection. Krell tempers any single benchmark:
Like all things vision, it depends. The size of the object being scanned, surface color and finish, the object's z-height, and required resolution all determine how fast an object can be scanned. With snapshot-based 3D vision systems, you can typically acquire an image in 250 milliseconds.
Which 3D scanning method fits your application?
Method | Best For | Tradeoff |
|---|---|---|
| Laser triangulation | High-speed inline profiling, tolerant of ambient light | Requires stable part motion for line-scan setups |
| Structured light (fringe projection) | Robot metrology, feature measurement (slots, holes, studs) | Sensitive to highly reflective or transparent surfaces |
| Stereo vision | General-purpose 3D measurement, robot guidance | Lower precision on textureless or specular surfaces |
| Time-of-flight (ToF) | Large-volume scanning, bin picking, logistics | Lower resolution than triangulation-based methods |
Krell flags a detail that buyers often miss:
Many Cognex 3D vision systems feature a laser-based line scanner that requires motion, either moving the scanner above the part or moving the part under the scanner. Often overlooked is that this type of system needs a consistent motion speed or an encoder to provide the scanner with the speed and direction information it needs to generate the scan. The other type of scanner is the snapshot type, or area scanner. With this system, both the camera and the part must be stationary; any motion or significant vibration will cause blur and inaccuracy. In many cases, the best results come from integrating the 3D camera properly into the process.
How does Geometric Dimensioning and Tolerancing (GD&T) automation work with point cloud data?
GD&T automation software analyzes a point cloud against a part's tolerance zones, flagging flatness, concentricity, or profile deviations without requiring manual calculations. Because the check runs against the same CAD model every time, it also resolves inconsistencies among inspectors.
Krell pushes back on a common assumption:
Higher resolution is not always better. I have had customers struggle with applications where they set the resolution to the maximum, only to struggle with large image sizes that can cause the inspection software to lag and crash. What matters more is a good surface finish that lets you see and measure part details.
How does 3D inspection also improve compliance, safety, and yield?
Beyond detecting dimensional defects, point cloud inspection creates an audit record, checks hazardous parts from a distance, and distinguishes real flaws from cosmetic variations.
- Traceability. A point cloud is a permanent digital record of a part's geometry, replacing handwritten logs that are archived and tied to a serial number.
- Worker safety. Long-range and handheld 3D scanners capture data from large components or hot fabricated metal from a safe distance.
- Fewer false rejects. Point cloud algorithms distinguish real defects from cosmetic variations, such as shadows, protecting sellable yield.
What is holding manufacturers back from adopting AI-based 3D inspection?
Most manufacturers are still early in adopting AI-based 3D inspection. A 2025 McKinsey State of AI survey cited by Quality Magazine found only 5 percent of manufacturing functions had adopted AI as of 2024, even though vision-based defect detection is the most mature use case.
A separate study from Boston Consulting Group found nearly three in four companies are struggling to scale AI value, even as McKinsey's lighthouse-facility research found productivity gains as high as 300 percent among mature programs.
Asked what he'd change, Krell doesn't hesitate:
The most desired change is making the systems easy to set up and program. I see many customers try to integrate the inspection system themselves instead of paying an integrator to do the job. They think they will save money doing it themselves, but it usually costs more in the end, and they are less successful than if they hire an experienced integrator. AI-based 3D vision systems, like the In-Sight L38, are much easier to program, and new Edge AI tools make defects easier to find.
Start with one line, not the whole factory
The manufacturers pulling ahead in quality aren't the ones with the most cameras. They're the ones who treat inspection as a digital record of every part on the line, and a 3D point cloud makes that possible.
Ready to see automated measurement in action?
Frequently asked questions
What is the purpose of a point cloud?
A point cloud's core purpose is to capture the exact spatial shape of a real object or space as a set of measurable coordinates, enabling that shape to be documented, compared, or digitally reconstructed. In manufacturing, this means comparing a scanned part to its CAD model to verify dimensional accuracy, as Quality Magazine has described in coverage of CMM-based point cloud scanning. Outside manufacturing, the same underlying data supports building and infrastructure documentation, robotics navigation, and autonomous vehicle perception. What changes across industries is the use case; what stays constant is the goal of converting a physical surface into precise, usable spatial data.
What are common tools used for point cloud modeling?
Point cloud modeling tools generally fall into two categories: software built into a specific scanner or CMM, and general-purpose analysis platforms. Scanner-specific packages handle part-to-CAD comparison and feature inspection directly from the scanner's native data. Broader metrology platforms add automated GD&T evaluation on digitized components, regardless of which scanner captured the data. Most tools follow the same basic pipeline: import the raw scan, align it to a reference model, then output a deviation or GD&T report.
How can machine learning improve point cloud analysis?
Machine learning models trained directly on raw point cloud data can classify, detect, and segment defects without the manual thresholds that traditional inspection software relies on, according to an ACM Computing Surveys review of point cloud based deep learning in industrial production. Segmentation models in particular can flag defective regions at the point level rather than just classifying a part as good or bad. Researchers have already applied this to real-time settings, including monitoring powder bed defects during metal 3D printing. As these models mature, they promise to catch subtler defect patterns than rule-based deviation checks alone, though most industrial deployments today still pair machine learning with conventional CAD comparison rather than replacing it.
What is the difference between 2D and 3D point cloud data?
A 2D image or depth map assigns a single value, such as color or distance, to each pixel in a flat grid, whereas a 3D point cloud assigns a full X, Y, Z coordinate to each point in space. That difference is why 2D imaging struggles with defects defined purely by shape, such as a dent that doesn't change color or contrast. A 3D point cloud measures the actual geometry, so it detects those defects directly rather than inferring them from lighting and shadow. In practice, many inspection systems still use 2D imaging for surface and print quality while reserving 3D point cloud capture for dimensional and geometric checks.
