Key Takeaways
- 3D laser profiling captures real height data, catching defects 2D vision misses on reflective or curved parts.
- True dimensional output enables tolerance-based pass or fail decisions instead of subjective visual judgment calls.
- The right deployment depends on part speed, surface type, and required resolution before hardware selection.
Your 2D camera can confirm a defect is there. It cannot tell you how deep it is, how high it is, or whether it is a defect rather than a shadow. That blind spot creates scrap, warranty risk, and inspection stations that pass bad product because lighting conditions masked the issue.
3D laser profiling closes that gap. Instead of a flat picture, it measures a surface's actual shape, point by point, at accuracy levels manual gauges and standard 2D vision cannot reliably match. If yield, throughput, or quality escapes are on your plate, understanding how this works is the first step toward knowing where it belongs.
What is 3D laser profiling?
3D laser profiling projects a laser line onto a part and uses a camera set at a fixed angle to calculate height along that line. Also known as 3D laser triangulation, it converts thousands of line profiles into a point cloud, a dense map of X, Y, and Z coordinates. Stack enough profiles together as the part moves past the sensor, and you get a complete 3D surface instead of a 2D image that guesses at depth.
The principle is visible in the laser line itself. Dennis Park, Senior Applications Engineer for Customer Success at Cognex, walks non-technical customers through it the same way every time: "If the material is very flat, the laser line remains flat; if the material is above the bottom plane, the laser line shifts." That shift, visible on screen, is the entire measurement.
How does triangular 3D measurement actually calculate height?
The math behind 3D laser triangulation is straightforward trigonometry applied at industrial speeds. A laser projects a line at a known angle onto the target, and a camera offset by a fixed distance observes where it lands. When surface height changes, the line's position on the sensor shifts. That shift, combined with the known angle and offset, yields a precise height value for every point along the line.
Choosing that angle and standoff distance is not guesswork. Park ties those set-up decisions directly to the field of view and tolerance requirements that determine whether a single sensor is enough:
I start every project by pinning down the field of view and required tolerance, for example, a 40 to 50 mm target held to plus or minus 0.02 to 0.03 mm. In South Korea, customers frequently demand large FOV and high precision, which may often mean a multi-head, multi-camera solution instead of a single sensor.
Why does a 3D laser profiler need the part to be moving?

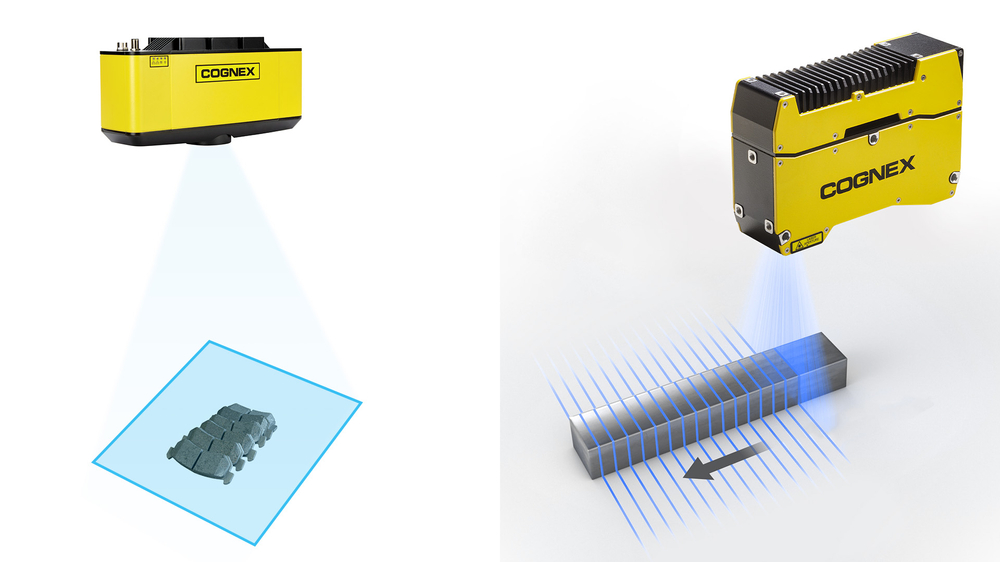

A laser profiler builds its image one line at a time, so either the part or the sensor must move. That makes triangulation a natural fit for conveyors, robotic end effectors, rotating shafts, and other processes where motion already exists and can be used to build complete 3D data.
For teams evaluating where 3D measurement fits, the first decision is whether the application needs line-scan 3D data from a moving part or a stationary snapshot.
3D laser profiling vs. other 3D vision methods
Laser triangulation is one of four common 3D imaging approaches, alongside structured light, time-of-flight, and stereo vision, a distinction reflected in broader machine vision inspection guidance. Each trades accuracy, speed, and cost differently, so the right choice depends on your part and process.
Method | Typical Accuracy | Motion Required | Best Fit |
|---|---|---|---|
| Laser Triangulation | Micron to sub-millimeter | Yes, part or sensor | Inline dimensional inspection, weld and seam checks, moving parts |
| Structured Light | Sub-millimeter | No | Stationary complex geometry, surface defect detection |
| Time of Flight | Millimeter range | No | Robot guidance, bin picking, longer-range depth sensing |
| Stereo Vision | Variable, lighting-dependent | No | Outdoor or variable lighting, general object sizing |
Why is 3D laser profiling essential for high-accuracy inspection?
3D laser profiling is essential for high-accuracy inspection because it measures actual geometry instead of inferring defects from shadows and contrast. Laser 3D profile scanning research supports that approach for precise geometric measurement.
Catching what 2D cameras and manual gauges miss
3D laser profiling is especially valuable in applications where surface appearance alone cannot reliably reveal whether a part meets spec, including:
- Reflective and dark surfaces, where glare defeats standard cameras but not a calibrated laser profiler
- Subtle dents, bumps, and scratches that barely change color but do change height
- Curved geometry, like weld beads on a corner radius, where 2D cameras lose the feature as the surface bends away
- Features that only exist in the Z axis, such as gap depth, coplanarity, or weld bead height
Park points to one recurring example where 3D profiling solved a measurement problem that 2D imaging could not resolve:
At one electric vehicle facility, 2D line and area scan systems struggled to measure a platform because the loaded material was tilted. Our team scanned the full part with a 3D profiler, extracted a flat reference plane from a known area, and re-rendered the image against it. That digital correction compensated for tilt and delivered circularity and datum measurements the tilted 2D setup could not.
3D vision systems can measure differences in volume that only exist in the Z-axis.
Subtle defects on reflective or dark surfaces that 2D systems struggle with can be detected by 3D laser profiling.
How BOS Innovations solved reflective part inspection with 3D laser profiling
BOS Innovations, an automation OEM serving the defense, metal, mining, and nuclear industries, needed to guide robotic bin picking for randomly located, highly reflective zirconium rods, as described in its published BOS Innovations customer story. The company chose a Cognex In-Sight 3D vision system built on 3D laser displacement technology with a speckle-free blue laser for the accuracy and speed it required.
The result eliminated background noise from the specular metal surface and gave the robot a precise target, even with parts arriving in unpredictable positions. Since deployment, the end customer has improved quality control and throughput while reassigning staff toward higher-value work.
Read the full story: How BOS Innovations Uses Cognex 3D Machine Vision to Automate Robotic Bin Picking
If reflective, randomly oriented, or oddly shaped parts are creating similar blind spots on your line, request a demo to see how 3D laser profiling can handle them directly.
What should you look for in a 3D laser profiler?
Choosing the right 3D laser profiler typically involves matching five specs to your application: point density and resolution, scan rate, Z-range, and surface handling, rather than defaulting to the highest number on a spec sheet, especially when comparing available 3D vision systems.
- Point density and resolution: how small a feature the system must resolve
- Profile or scan rate: how fast the sensor captures lines relative to line speed, in Hz
- Z-range and standoff distance: the usable depth and working distance for the part
- Surface handling: how the system manages speckle, glare, and low-contrast surfaces without added lighting
- Software and connectivity: compatibility with GigE Vision and IIoT data pipelines for Industry 4.0 reporting
How does 3D laser profiling fit into Industry 4.0 and IIoT strategies?
3D laser profiling supports Industry 4.0 and IIoT strategies by generating structured measurement data manufacturers can feed into statistical process control, traceability, and closed-loop process adjustments, using standards such as GigE Vision where appropriate.
Park sees that shift moving from inspection into active process control:
For a large EV manufacturer in South Korea, Cognex 3D profilers scan gap filler material before and after it is dispensed onto the vehicle platform. By comparing the two scans, the systems send volume data back to the dispensing control in real time, moving 3D profiling from inspection into active process control.
Where 3D laser profiling fits in your quality strategy
3D laser profiling is not a replacement for every inspection point on a line. It is the right tool when a defect or tolerance lives in height, depth, or volume rather than color or pattern, and when the part is reflective, curved, or otherwise resistant to standard 2D imaging.
Teams under pressure to raise yield, cut scrap, and free up inspectors get the most value by mapping their highest-cost defects first, then choosing the technique most likely to catch them. For many, that starts with a few dimensional checkpoints, not a full line replacement.
Download the Essential Guide to Automated Measurement and Dimensioning for a closer look at matching 3D laser profiling and other measurement technologies to your specific application.
Frequently asked questions
How accurate is 3D laser profiling?
Accuracy depends on the specific sensor, triangulation angle, and target surface, but industrial 3D laser profilers commonly deliver micron- to sub-millimeter accuracy in production settings. Peer-reviewed testing of line-laser profiling methods has recorded geometric accuracy as fine as 18 micrometers with repeatability under 3 micrometers, figures published in a laser 3D profile scanning calibration study in Optics and Lasers in Engineering. Separate robotics research on scanning parameter configuration also notes that laser profilers hold micron-level accuracy and stay robust under variable lighting, unlike RGB or depth cameras. That reliability is why electronics, automotive, and semiconductor manufacturers lean on them for tight-tolerance work. In practice, the number that matters most is not a single headline figure. It is whether the sensor's resolution and repeatability match your part's actual tolerance band, since over-specifying resolution adds cost without adding value.
What is the difference between 2D and 3D laser profilers?
A 2D system captures a flat image and infers defects from contrast, color, and pattern, which works well for reading codes, verifying presence, or checking print quality. A 3D laser profiler instead measures actual height and depth by triangulating a projected laser line, producing X, Y, and Z coordinates rather than a picture. That distinction matters most on reflective, dark, or curved parts, where 2D contrast breaks down, but height data does not, and on tolerance-driven checks like gap, flush, or coplanarity that have no real 2D equivalent. One machine vision inspection overview frames the broader split simply: 1D systems build a profile line by line, 2D systems evaluate a flat scene, and 3D systems reconstruct an object's actual geometry. Most production lines run both: 2D for identification and cosmetic checks, and 3D for anything where geometry itself is the pass-or-fail criterion.
What are the most common applications for 3D laser profilers?
3D laser profilers show up wherever a defect or tolerance is defined by geometry rather than appearance. Common applications include weld seam and bead inspection, gap and flush checks in automotive body assembly, dimensional verification on EV battery components, solder paste and PCB height inspection in electronics, and robotic bin picking on parts with unpredictable orientation. Academic robotics research points to automotive, electronics, and semiconductor manufacturing as the sectors with the deepest adoption, largely because those industries combine tight tolerances with high production volumes. Within Cognex, the same laser displacement technology behind 3D laser profiling appears across 3D vision systems used for tasks ranging from reflective-part bin picking to real-time dispensing control.
What are the benefits of switching from 2D vision to 3D laser profiling?
The clearest benefit is catching defects 2D vision cannot see, since height, depth, and volume data expose problems that never register as a contrast or color change. Another benefit is more objective, tolerance-based decisions. The system compares real dimensional data against a spec instead of relying on a person or a contrast threshold to judge pass or fail. Manufacturers also gain flexibility on parts that used to require careful fixturing, because a 3D profiler can correct for tilt or misalignment computationally rather than mechanically. Since 3D profiling outputs structured numerical data rather than a photo, it plugs more directly into statistical process control, traceability systems, and Industry 4.0 reporting. The business case depends on cost, complexity, and defect value, so most manufacturers convert their highest-value inspection points first rather than replacing every 2D camera on the line.
