Key Takeaways
- Area-scan cameras capture full 2D images to read damaged, skewed, or low-contrast barcodes.
- Modern vision systems detect empty totes, overlapping parcels, and misroutes before they cause rework.
- AI expands detection capabilities, but experienced engineers remain essential for maximum value.
Logistics scanning has moved well beyond simple barcode capture. In a modern distribution center, every scan is a decision point. When a label is wrinkled, poorly printed, skewed, or partially obscured, the system either keeps product moving or sends labor chasing an exception. That difference affects throughput, order accuracy, carrier compliance, and the customer experience.
Area-scan cameras give logistics teams a more resilient foundation for barcode reading because they capture the full scene, not just a narrow beam of reflected light. Paired with AI and practical application expertise, they help operations leaders see why exceptions happen, reduce avoidable rework, and design automation around evidence instead of assumptions.
What is an area-scan camera and why does it matter for logistics?
An area-scan camera captures a complete two-dimensional image in a single exposure. In logistics, that image becomes much more than a barcode read. It can decode a code, verify a label, classify a package, and preserve visual evidence for root-cause analysis. The result is a scanning process that turns exceptions into usable operational intelligence.
Area-scan vs. laser scanners: what's different?
Laser scanners still have a place in simple, controlled applications, but they are limited by design. A laser projects a single beam across a 1D barcode. If the code is damaged, angled, reflective, or outside the ideal read zone, performance drops and there is no image to review afterward. Area-scan cameras capture the full field of view, allowing decoding algorithms to compensate for skew, low contrast, partial damage, and label variation. Just as important, stored no-read images show teams what caused the failure.
| Feature | Laser Scanner | Area-Scan Camera |
|---|---|---|
| Barcode types supported | 1D only | 1D and 2D (QR, DataMatrix, etc.) |
| Image capture | No, single beam reflection | Yes, full 2D image stored |
| Read rate on damaged labels | Low | High (algorithm-corrected) |
| No-read diagnostics | None | Image analysis for causes of no-read |
| AI classification capability | Yes (package type, label presence) | |
| Typical read rate | ~95% | Up to 99.9%+ |
| Motion tolerance | Limited | High (global shutter, high-speed capture) |
Comparison table showing area-scan cameras outperforming laser scanners across seven dimensions, especially read rate on damaged barcodes, no-read diagnostics, and AI classification capability.
How do no-reads hurt your operation?
No-reads create manual rework, mis-sorts, WMS inventory gaps, OTIF chargebacks, and carrier billing errors when manifest data is incomplete. They also hide the process issues behind each exception. Area-scan cameras close that gap by capturing the image evidence teams need to understand what happened and why.
The cost compounds when teams keep fixing the symptom instead of the source. Kenny Gu, Project Solutions Engineering Leader for Cognex China, describes a real-world example from one of China’s largest e-commerce providers:
Their warehouse ran laser scanners to read pallet label codes, a simple application. But labels needed replacing every two or three months due to wear and tear. Once the scanner could no longer read a damaged code, the pallet stopped moving. After switching to image-based readers, read rates improved significantly because the algorithms handle damaged codes. They save images to assess the root cause of any no-read, and they no longer need to change labels so frequently.

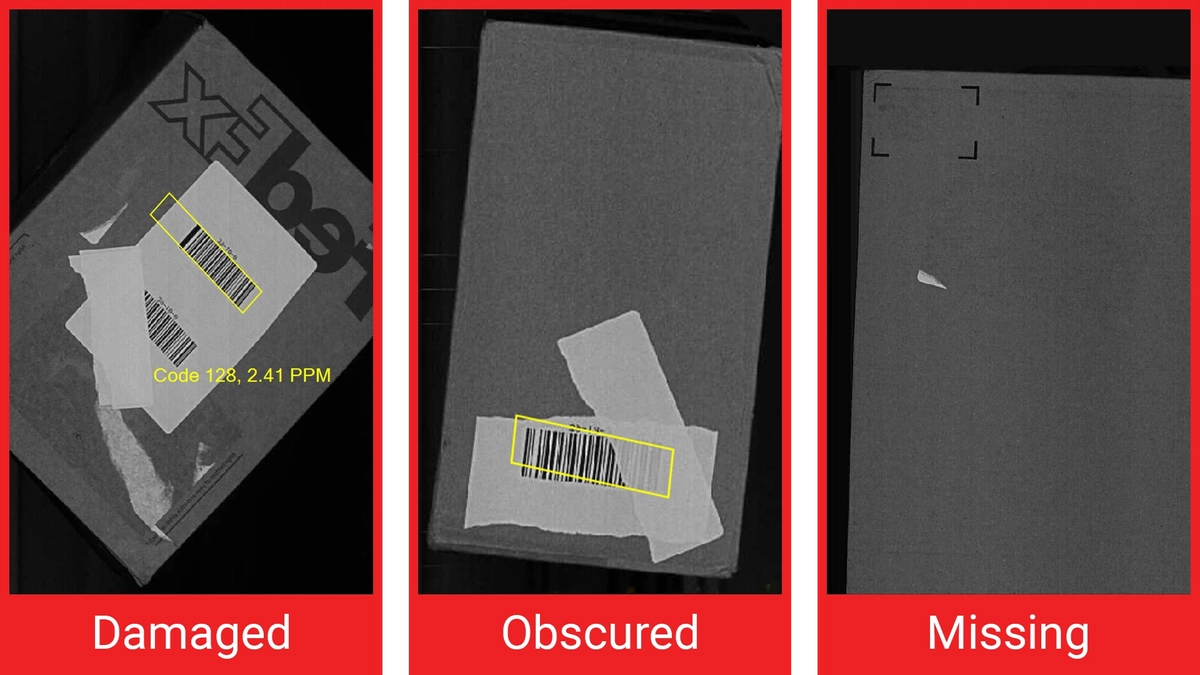

The lesson is clear. Image evidence helps teams identify recurring causes such as worn labels, poor placement, vendor noncompliance, or package handling issues, turning barcode reading into a continuous improvement tool.
How American Eagle Outfitters eliminated barcode blind spots across three distribution centers
American Eagle Outfitters’ 1.65-million-square-foot facility in Hazleton, Pennsylvania, was originally built around laser-based barcode reading. The systems could tell the team that a read had failed, but not why. Without image evidence, it was difficult to know whether the issue came from barcode quality, label placement, package orientation, or reflection.
If I can see where the problem is, I can fix the problem. With a laser-based system, you don't know where your problems are, whether the barcode was good or bad, or whether there was too much reflection on the code.
Brian Poveromo, Director of Facilities and Maintenance, American Eagle Outfitters
Image-based reading closed that visibility gap. After transitioning to Cognex systems across inbound receiving, sorter, and picking module workflows, American Eagle standardized 90% of its logistics scanning technology on Cognex across three distribution centers, gaining stronger read rates and clearer visibility into vendor compliance, rework, mis-sorts, and order risk.
Read the full story: How American Eagle Outfitters Operates Omnichannel Facilities with Cognex Logistics Solutions
For logistics leaders, the point is not simply that cameras outperform lasers. It is that image-based systems provide the evidence needed to improve the process behind the scan.
What process issues can area-scan cameras detect beyond barcode reading?
A scanner answers, “What’s the code?” A vision system can answer a broader operational question: “Is this package ready to keep moving?” Area-scan cameras can detect empty totes, overlapping packages, missing labels, misapplied labels, and packaging damage before those issues create downstream failures.
Vision systems can detect empty totes…
… or overlapping packages.
How does AI change what an area-scan camera can see?

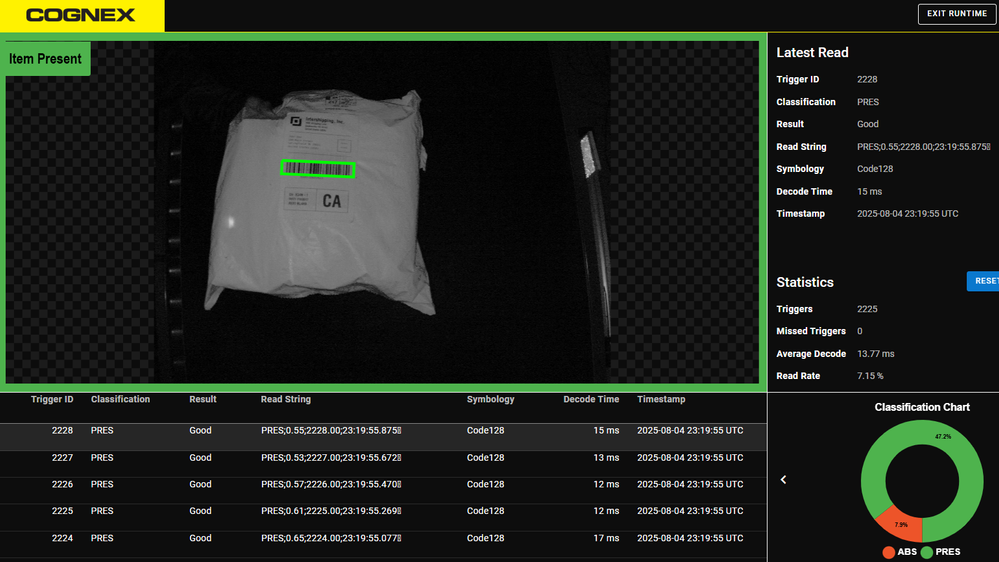

Edge AI expands what area-scan systems can handle because logistics environments are rarely uniform. Polybags wrinkle. Cartons shift. Labels arrive with unpredictable print quality. AI-powered vision systems optimized for logistics environments can classify package types and support real-time sortation decisions at speeds where manual review is not practical.
That does not make AI a cure-all. Gu is direct about the difference between a powerful tool and a complete solution:
Some customers think AI can do anything, that a tunnel scanning system can read any code, even if it's cut in two, and the read rate will always be 100%. In fact, only by combining AI with experienced engineers can we deliver maximum value. Through this cooperation, we can solve problems that were previously unsolvable: package damage detection, package classification, and item detection in totes. The idea that AI can completely replace people is incorrect.
The strongest deployments combine AI with engineering judgment. Models improve detection and classification, but experienced teams still define the application, tune performance, interpret edge cases, and decide which process changes will deliver measurable value.
What makes a high-speed area-scan camera right for high-throughput conveyors?
On high-speed sortation conveyors, camera selection becomes a performance decision. Resolution, frame rate, field of view, depth of field, and GigE Vision connectivity all influence how much package variation the system can absorb before read confidence drops. Shutter type matters too, especially when conveyors run at 150+ feet per minute. Gu explains the difference with a simple analogy:
A rolling shutter works like an inkjet printer. It prints one line, feeds the paper forward, then prints the next. If the paper moves faster than the printer can complete a line, the characters become jumbled. A global shutter is more like using a heated press machine to transfer letters, numbers, and graphics onto a shirt all at once. Everything is captured in a single instant, so it handles high-speed motion cleanly.
For fast-conveyor applications, a global shutter is the practical choice because motion distortion from a rolling shutter cannot be fixed after capture. Higher megapixel counts support wider fields of view, while rapid autofocus helps adjust to package-height variation in real time.
Understanding the SLAM line and where area-scan cameras fit
The Scan, Label, Apply, Manifest (SLAM) process is the final 100 feet of outbound fulfillment and one of the highest-stakes zones for barcode accuracy. If a package cannot be read, it cannot be labeled, dimensioned, or manifested with confidence. Fixed-mount barcode scanners at SLAM induction points provide hands-free reading, support GS1-128 and 2D codes, and store image evidence for compliance and dispute resolution.
Scan tunnel architecture extends coverage to all six faces of a package, but complexity can become its own obstacle. StreamTech Engineering, a Cognex logistics integrator, found that high-FOV area-scan readers can reduce tunnel complexity by replacing multi-camera setups with one camera per side, simplifying installation, troubleshooting, and long-term support.
We’re working on a new scan tunnel design for a client and adopting the new Cognex series of readers, the DataMan 380. We think they’re really cool because they have a very large depth of field and field of view. It basically includes everything you could ever want. In the past, this has seemed unachievable because typically you’d need between seven and nine cameras, and when they have read issues, it’s hard to pinpoint, hard to set up, and hard to figure out which is underperforming. One camera per side of the box is fantastic, so we’re keen to adopt this early on.
Patrick Bradford, Product Development Manager, StreamTech Engineering
Read the full story here: How StreamTech Engineering Elevates E-Commerce Fulfillment with Machine Vision
That matters because SLAM is not just the last process step. It is the last chance to catch data, label, routing, or manifest issues before they reach the customer.
Where is barcode reading headed in the next three to five years?
Read rate optimization is now the baseline, not the end state. The next generation of area-scan technology will do more from a single device, which means operations teams should evaluate readers as flexible data platforms, not one-purpose scanners. Gu points to the capability shift many facilities are beginning to anticipate:
AI-augmented reading must be the next generation. We can add AI to increase read rates, but also use AI to identify information on the label, like OCR, and get the package's coordinates. Customers always want a single reader that handles everything to save costs. The new Cognex SLX platform has already combined AI with barcode reading, and I think it will bring many opportunities for our logistics customers to improve their operational efficiency.
A reader that can expand through AI model updates is a different investment than a single-function scanner. OCR, coordinate detection, and package classification can turn the same imaging foundation into a broader automation asset. For multi-year logistics roadmaps, flexibility may matter as much as peak read rate.
Building the ROI case for area-scan camera investment
The ROI case for image-based barcode reading extends beyond labor savings. Every percentage point of read rate improvement can reduce operator costs, customer retention exposure, and throughput losses. The value becomes clearer when teams model those gains against daily package volume.
| Cost Driver | Manual / Laser System | Image-Based Area-Scan |
|---|---|---|
| Typical read rate | 97–99% | Up to 99.9% |
| Operator rework time per no-read | 1.5 min at $15/hr. — manual divert, re-scan, re-sort | Near zero for algorithm-handled reads |
| Customer retention exposure | ~10% of no-reads become lost or late packages, triggering compensation costs | Significantly reduced with higher read rates |
| Vendor compliance visibility | None | Full image capture per scan; non-compliant labels exportable for follow-up |
| Diagnostic capability | None — no image stored on failure | Stored images + trend analytics via Tunnel Manager |
| Scalability at peak volume | Labor scales linearly with volume | Fixed hardware cost regardless of volume |
| WMS integration | May require protocol converters | Native industrial Ethernet / GigE Vision protocols |
ROI comparison table contrasting laser-based and image-based area-scan systems across seven cost drivers. Image-based systems eliminate per-no-read labor, reduce customer retention exposure, and add diagnostic visibility that laser systems cannot provide.
What a 0.9% read rate improvement is actually worth
According to a Cognex white paper that models a high-volume distribution center processing 229,263 packages per day at 550 feet per minute, a $150,000 investment in image-based barcode readers that improves read rates by just 0.9% — from 99% to 99.9% — delivers:
2,063
fewer packages manually reworked per day
$270,769
saved annually in operator rework costs
$361,025
avoided annually in customer retention costs
Combined, those savings deliver full ROI on the $150,000 investment in under three months and generate $1,113,587 in cumulative profit over two years. With no moving parts, image-based readers can keep compounding returns as volume grows.
| Read Rate | No-Reads/Day | Operators Required | Annual Operator Cost | Annual Customer Retention Cost |
|---|---|---|---|---|
| 97% | 6,878 | 21.5 | $902,738 | $1,203,650 |
| 98% | 4,586 | 14.3 | $601,913 | $802,550 |
| 99% | 2,293 | 7.2 | $300,956 | $401,275 |
| 99.5% | 1,147 | 3.6 | $150,544 | $200,725 |
| 99.9% | 230 | 0.7 | $30,188 | $40,250 |
Read rate cost ladder for a high-volume DC (229,263 packages/day) showing that moving from 97% to 99.9% reduces annual operator costs from $902,738 to $30,188 and customer retention costs from $1,203,650 to $40,250.
Source: When 99% Just Isn't Enough: Benefits of Improved Read Rates in Logistics Scanning, Cognex white paper. Figures based on modeled high-volume DC scenarios; actual results will vary by facility.
How the numbers scale for smaller facilities
The ROI holds at lower volumes too. In a fulfillment center processing 115,200 packages per day, a $50,000 investment that improves read rates from 98% to 99% saves $129,600 in annual labor costs and pays back in just over five months. Moving from 98% to 99.9% returns full ROI in less than 2.5 months while adding 2,188 packages per day back to productive throughput.
| Read Rate | No-Reads/Day | Operators Required | Annual Operator Cost | ROI on $50K Investment |
|---|---|---|---|---|
| 98% | 2,304 | 7.2 | $259,200 | — |
| 99% | 1,152 | 3.6 | $129,600 | ~5 months |
| 99.5% | 576 | 1.8 | $64,800 | ~3 months |
| 99.9% | 116 | 0.4 | $13,050 | ~2.5 months |
Read rate cost table for a lower-volume DC (115,200 packages/day) showing operator cost reductions and ROI timelines for a $50,000 image-based reader investment at different read rate improvement levels.
Source: When 99% Just Isn't Enough: Benefits of Improved Read Rates in Logistics Scanning, Cognex white paper. Figures based on modeled lower-volume DC scenarios; actual results will vary by facility.
Read rate is not an operational footnote. It is a financial lever. At distribution center scale, even fractional barcode performance gains can create six-figure annual returns while reducing peak-demand rework.
Take the next step toward higher read rates and lower rework
Area-scan cameras make operational discipline achievable at scale. By capturing codes, flagging exceptions, and preserving image data for root-cause analysis, they help fulfillment teams improve read rates now while building a stronger foundation for automated, data-rich operations.
Ready to evaluate where image-based reading could improve visibility, throughput, or exception handling in your environment?
